GENERAL INFO
Model: Abound SR Ebike
Weight: 80 lbs
Total Weight Limit: 440 lbs
Rider Height: 4'11" - 6'3"
Ebike Class: Class 2 Ebike
Water Resistance: IPX5
Ideal Use: Cargo & Utility
Pedal Assist: 3 Levels (with Ride Tune Customization)
Safety Certifications: UL and TUV Safety Certified UL 2849
Range: Up to 60 miles
Folding: No
Battery Safety Certifications: Certified to UL 2271
Carry Capacity: Carry A Single Passenger
FRAMESET
Fork: Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame Style: Step-Through
Frame: 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
WHEELSET
Tires: 20 x 3.0 urban tire with reflective sidewalls
Wheels: 20-inch, 12-gauge, 36-hole, double-wall aluminum, black
EBIKE SYSTEM
Motor Torque: 80Nm
ECU: Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: Aventon 4A 42V
Display: Aventon BC147
Speed: Class 2
Battery: Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Motor: Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
BRAKES
Rear Brake Rotor: Tektro 203mm 6 bolt
Front Brake: Tektro HD-E3520 hydraulic disc brakes
Rear Brake: Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor: Tektro 180mm 6 bolt
DRIVETRAIN
Chain: 122 Link, 8 Speed
Chainring: 52 tooth
Crank: 3pc, 165mm crank arm
Rear Derailleur: Shimano Altus RD-M310 8 Speed
Shift Lever: Shimano SL-M315-8R 8 Speed
Cassette: Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals: 9/16" Composite Platform
COCKPIT
Saddle: Aventon by SelleRoyal
Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars: BMX Style, 31.8mm bar clamp, 680mm width
Stem: Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp: 34.9mm Quick Release
Grips: Lock-on ergonomic
INCLUDED ACCESSORIES
Rear Rack: Included
Kickstand: Included: E-lock
Rear Wheel Mesh Guards: Included
Rear Rack Weight Limit: 143 lbs

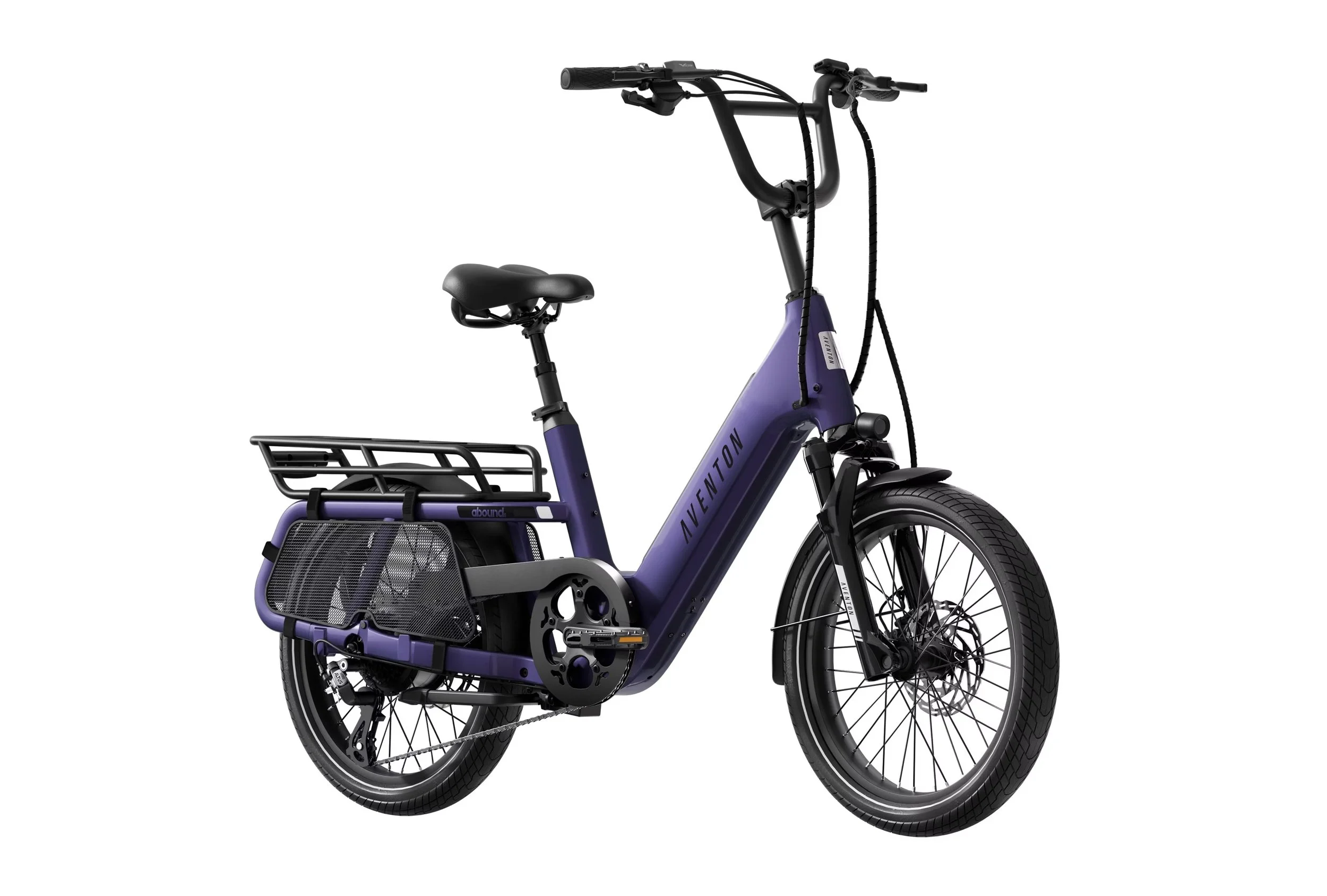

aventon Abound SR Ebike
Compact cargo bike with added security features
Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.
Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.
It’s SRsly fun.
Enhanced security meets advanced technology
The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock , Geofencing and Passcode safeguards your Abound SR and deliver an ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time.
Remote Lock & Geofence
The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.
E-Lock Kickstand & Alarm
Quickly, easily and securely lock your kickstand right from your display or the Aventon app. Also, whenever there is movement or tampering, the Abound SR’s alarm system will activate audio and visual alerts. This is theft SRsly deterred.
Passcode & Keyless Battery
Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.
New Side Display with Intuitive Controls
Inspired by the simplicity and function of iconic MP3 players, the controls on the sleek new side display gives you an easy access to everything you need. Rest assured, it now has a USB-C port to conveniently charge your phone while you ride.
Adjustable Quill Stem & BMX Style Handlebars
The Abound SR is where agility meets maneuverability. Set the height of your seat for ultimate comfort and adjust the handlebars for ultimate control.
Suspension Seatpost
The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.
Ride Tune
Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Abound SR.
Over-The-Air Updates
Stay in the know while on the go. Enjoy optimal performance with intelligent overthe-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.
Rear Rack & Turn Signals
With an array of accessories, the rear rack allows 143 lb weight capacity to carry your precious cargo while keeping them visible with integrated turn signals. Front & rear fenders with rear wheel mesh guards will keep you and your cargo safe from the elements.
Abound SR Ebike Size Chart
| Measurement | One Size |
|---|---|
| Frame Size | One size fits most |
| Rider Height | 4'11" - 6'3" |
| Seat Tube Length (A) | 380mm (14") |
| Top Tube Length Horizontal (B) | 610mm (24") |
| Bottom Bracket Drop (C) | -30mm (-1") |
| Head Tube Length (D) | 210mm (8") |
| Head Tube Angle (E) | 69° |
| Seat Tube Angle (F) | 70° |
| Rear Chainstay Length (G) | 480mm (18") |
| Front Wheel Center (H) | 673mm (26") |
| Wheelbase (I) | 1151.5mm (45") |
| Reach (J) | 420mm (16") |
| Stack Height (K) | 520mm (20") |
| Fork Length (L) | 395mm (15") |
| Fork Offset (M) | 38mm (1") |
| Trail (N) | 63mm (2") |
