GENERAL INFO
Model: Aventure 3 Step Through Ebike
Weight: 77 lbs
Total Weight Limit: 400 lbs
Rider Height: R: 4'11" -5'7" | L: 5'7" - 6'1"
Ebike Class: Class 2 Ebike
Water Resistance: IPX5
Range: Up to 65 miles
Battery Safety Certifications: Certified to UL 2271
Ideal Use: All-Terrain
Bike Safety Certifications: UL Safety Certified UL 2849
FRAMESET
Frame: 6061 Aluminum, Gravity Cast Front Triangle
Fork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing: 190mm
Fork Spacing: 135mm
Frame Style: Step-Through
WHEELSET
Front Wheel: 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
Rear Wheel: 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
Tires: Inova 26x4.0 puncture resistant
EBIKE SYSTEM
Speed: Class 2
Motor: 36V, 750W Hub Drive
Motor Torque: 80Nm
Motor Power: 750W (1188 Peak)
Display: Aventon BC280
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: 36V/33A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Front and rear lights integrated
BRAKES
Front Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor: Tektro 180mm 6 bolt
Rear Brake Rotor: Tektro 180mm 6 bolt
DRIVETRAIN
Rear Derailleur: Shimano Altus 8-Speed
Shifter: Shimano 8-Speed Trigger
Chain: 7/8 Speed 118L
Cassette: 12-32T / 8 Speed Shimano CS HG200-8
Chainring: 48T
Chainring BCD: N/A
Crankset: 3pc, 170mm crank arm
Bottom Bracket: 100x177 Square Taper, Double Sided Torque sensor bottom bracket
Pedals: 9/16" Alloy Platform
COCKPIT
Saddle: Aventon Saddle
Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8mm, 680mm
Grips: Aventon Lock on grips
Headset: Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
INCLUDED ACCESSORIES
Kickstand: Included, rear mount
Rear Rack: Included
Fenders: Included
Aventure 3 Step Through Ebike
Embrace the All-Terrain
The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G†/GPS† capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.
GPS Tracking
With built in GPS , you can easily track your bikes' location through the Aventon app, and even receive alerts if it’s moved unexpectedly.
Integrated Rear wheel lock
An integrated rear wheel lock adds an extra layer of security by immobilizing your bike when parked, preventing it from being easily rolled away. Controlled through the Aventon app or directly on the bike display, this lock deters theft and gives you peace of mind when leaving your bike unattended.
Ride Tune Easily
Customize your ride feel through the Aventon app by fine tuning your torque, assistance, and pedal response in each of the three pedal assist modes.
Cross-Model Keyless Battery System
Quickly unlock and remove your battery directly through the bike’s display, offering fast, secure, and convenient access without worrying about keeping track of a set of keys. With cross-model compatability, your Aventure 3 battery will also work on the Abound SR, Abound LR, Level 3, and Pace 4.
Over-the-Air Updates
Over-the-air updates ensure your bike receives the latest ride features and improvements automatically through the bike’s display, keeping it up to date without a visit to the shop.

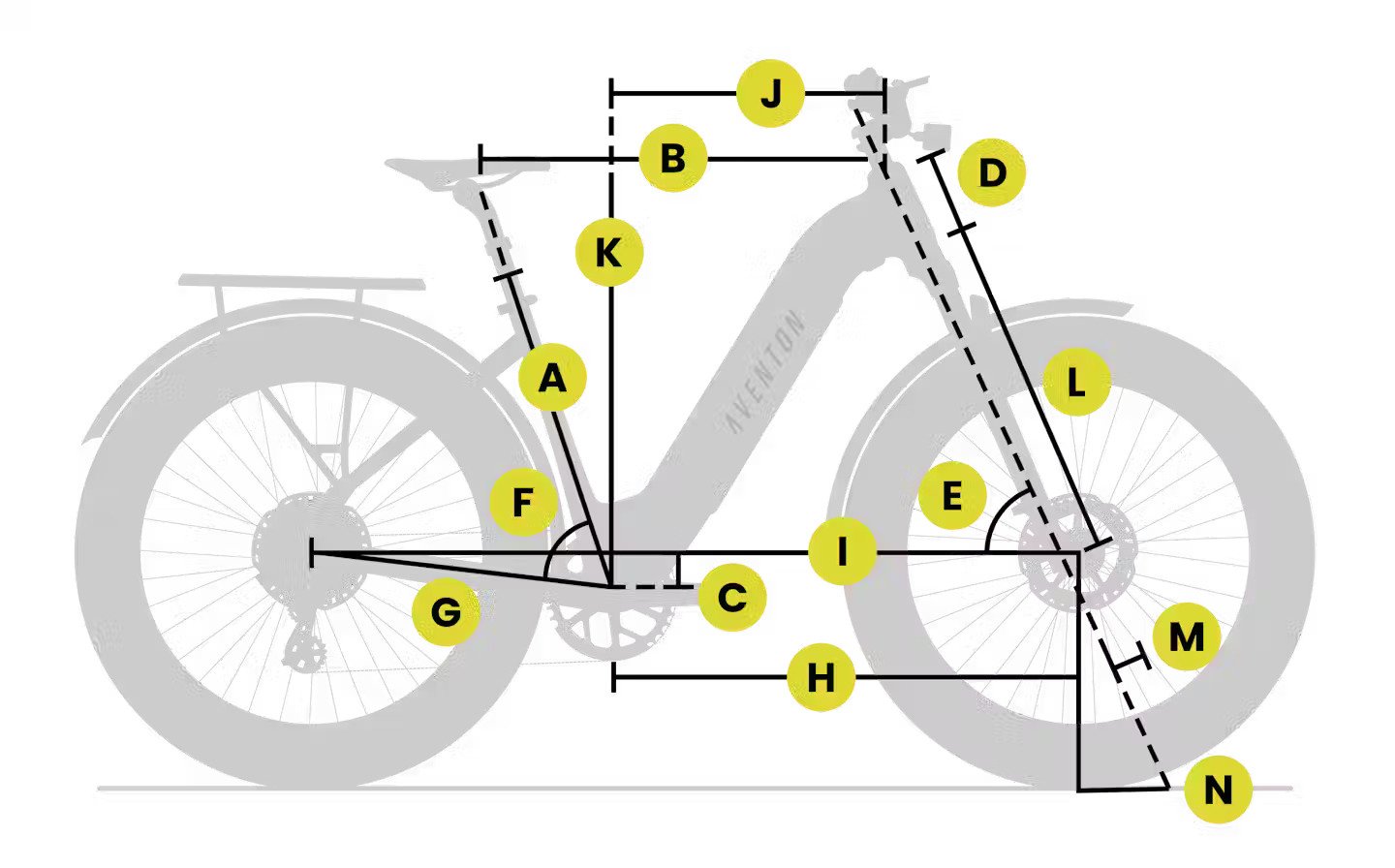

Aventure 3 Step Through Ebike Size Chart
| Regular | Large | |
|---|---|---|
| Rider Height (Range) | 150cm - 170cm (4'11" - 5'7") | 170cm - 185cm (5'7" - 6'1") |
| Wheel Size in Inches | 26" x 4.0" | 26" x 4.0" |
| Seat Tube Length (A) | 400mm (15") | 480mm (18") |
| Top Tube Length Horizontal (B) | 602.5mm (23") | 640.5mm (25") |
| Bottom Bracket Drop (C) | 65mm (2") | 65mm (2") |
| Head Tube Length (D) | 130mm (5") | 130mm (5") |
| Head Tube Angle (E) | 67° | 67° |
| Seat Tube Angle (F) | 72° | 72° |
| Rear Chainstay Length (G) | 470mm (18") | 470mm (18") |
| Front Wheel Center (H) | 689.8mm (27") | 727.6mm (28") |
| Wheelbase (I) | 1152.2mm (45") | 1190.2mm (46") |
| Reach (J) | 390mm (15") | 428mm (16") |
| Stack Height (K) | 653.9mm (25") | 653.9mm (25") |
| Fork Length (L) | 525mm (20") | 525mm (20") |
| Fork Offset (M) | 43mm (1") | 43mm (1") |
| Trail (N) | 102.5mm (4") | 102.5mm (4") |
