GENERAL INFO
Model: Aventure M Ebike
Ideal Use: All-Terrain Performance
Weight: 73 lbs
Total Weight Limit: 400 lbs
Rider Height: R: 5'3" -5'10" | L: 5'10" - 6'4"
Ebike Class: Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3)
Range: Up to 85 Miles
Water Resistance: Bike - IPX6 // Motor - IP67
Battery Safety Certifications: Certified to UL 2271
Safety Certifications: UL Safety Certified UL 2849
FRAMESET
Fork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing: 190mm
Fork Spacing: 135mm
Frame: 6061 Aluminum
WHEELSET
Front Wheel: 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
Rear Wheel: 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
Tires: Inova 26x4.0 puncture resistant
EBIKE SYSTEM
Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Motor Torque: 100Nm
Display: Aventon BC280
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: Integrated in Motor
Throttle: Aftermarket Throttle Available for Purchase
Sensors: Double Sided Torque Sensor Integrated in Motor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Integrated front and rear running lights (no brake lights)
BRAKES
Front Brake: SRAM DB4 Hydraulic Disc Brakes w/o cutoff
Rear Brake: SRAM DB4 Hydraulic Disc Brakes w/o cutoff
Front Brake Rotor: Sram G2 200mm 6-Bolt
Rear Brake Rotor: Sram G2 200mm 6-Bolt
DRIVETRAIN
Rear Derailleur: Shimano Cues 10-Speed
Shifter: E-Shifter
Chain: 9/10/11 Speed 124L
Cassette: Shimano Cues 10-Speed 11-39T
Chainring: 44T
Chainring BCD: N/A
Crankset: Aventon 170mm ISIS Splined
Bottom Bracket: N/A
Pedals: 9/16" Alloy Platform
COCKPIT
Saddle: Aventon Saddle
Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8, 720mm
Grips: Aventon Lock on grips
Headset: Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
INCLUDED ACCESSORIES
Kickstand: Included, rear mount
Rear Rack: Included
Fenders: Included

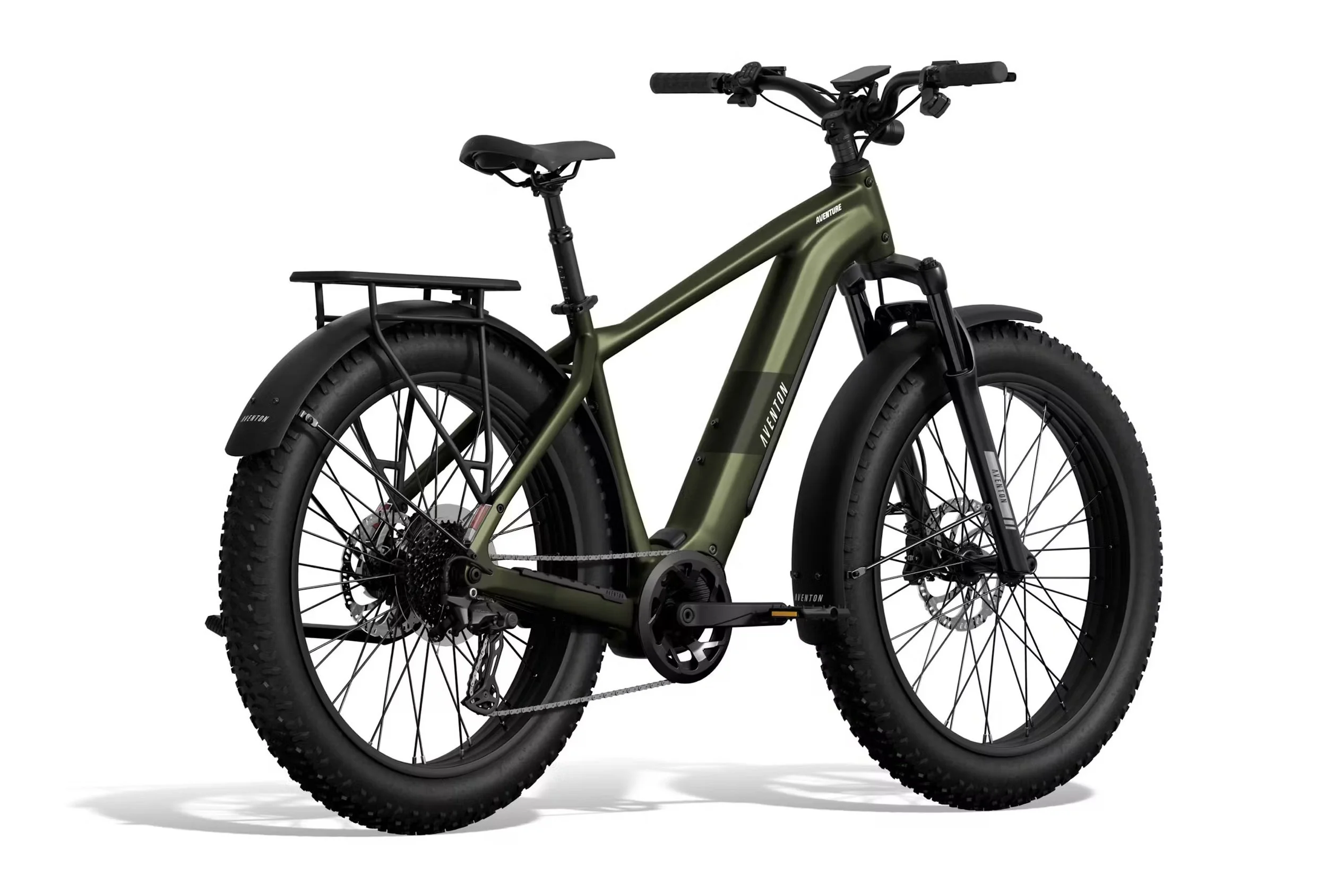

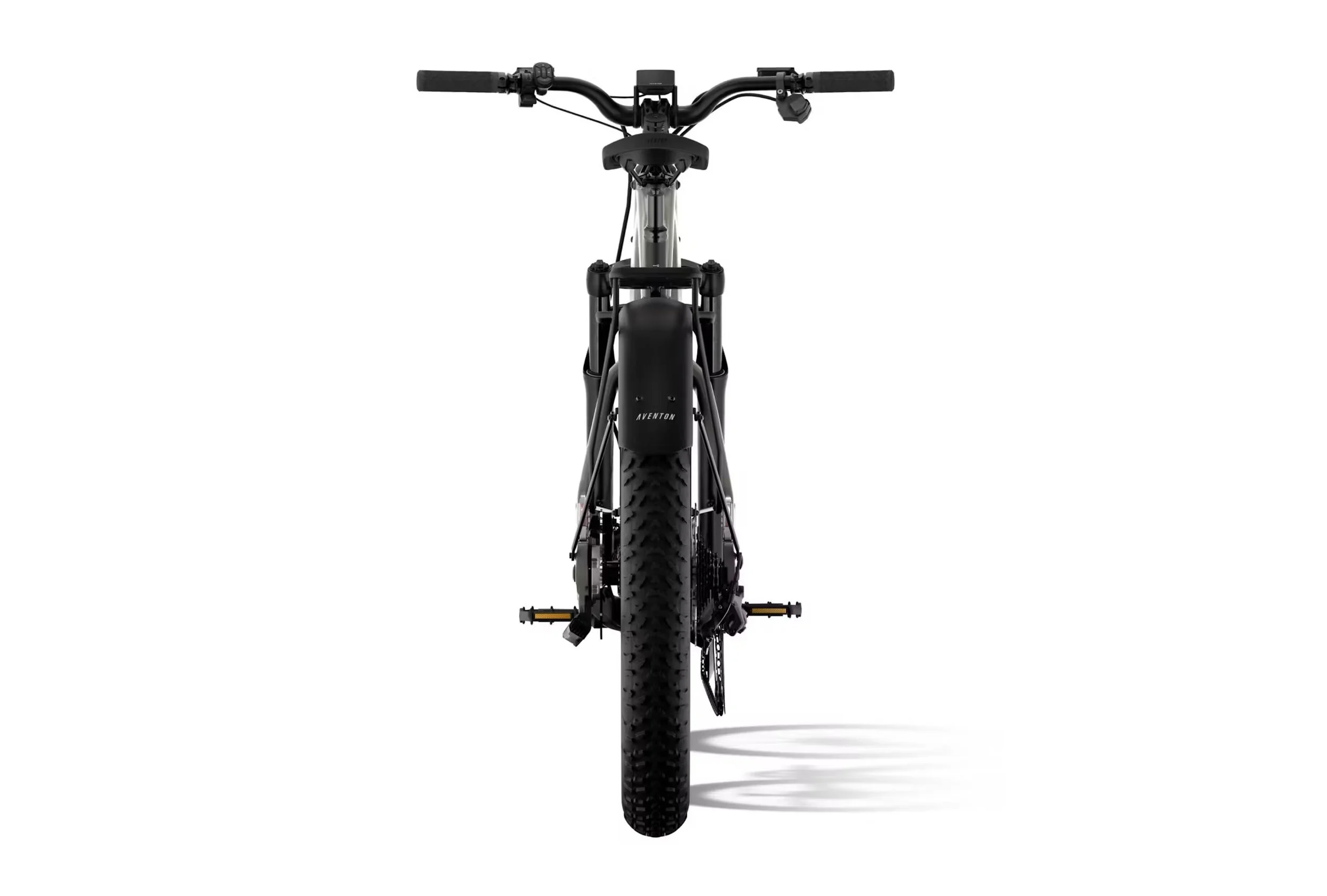

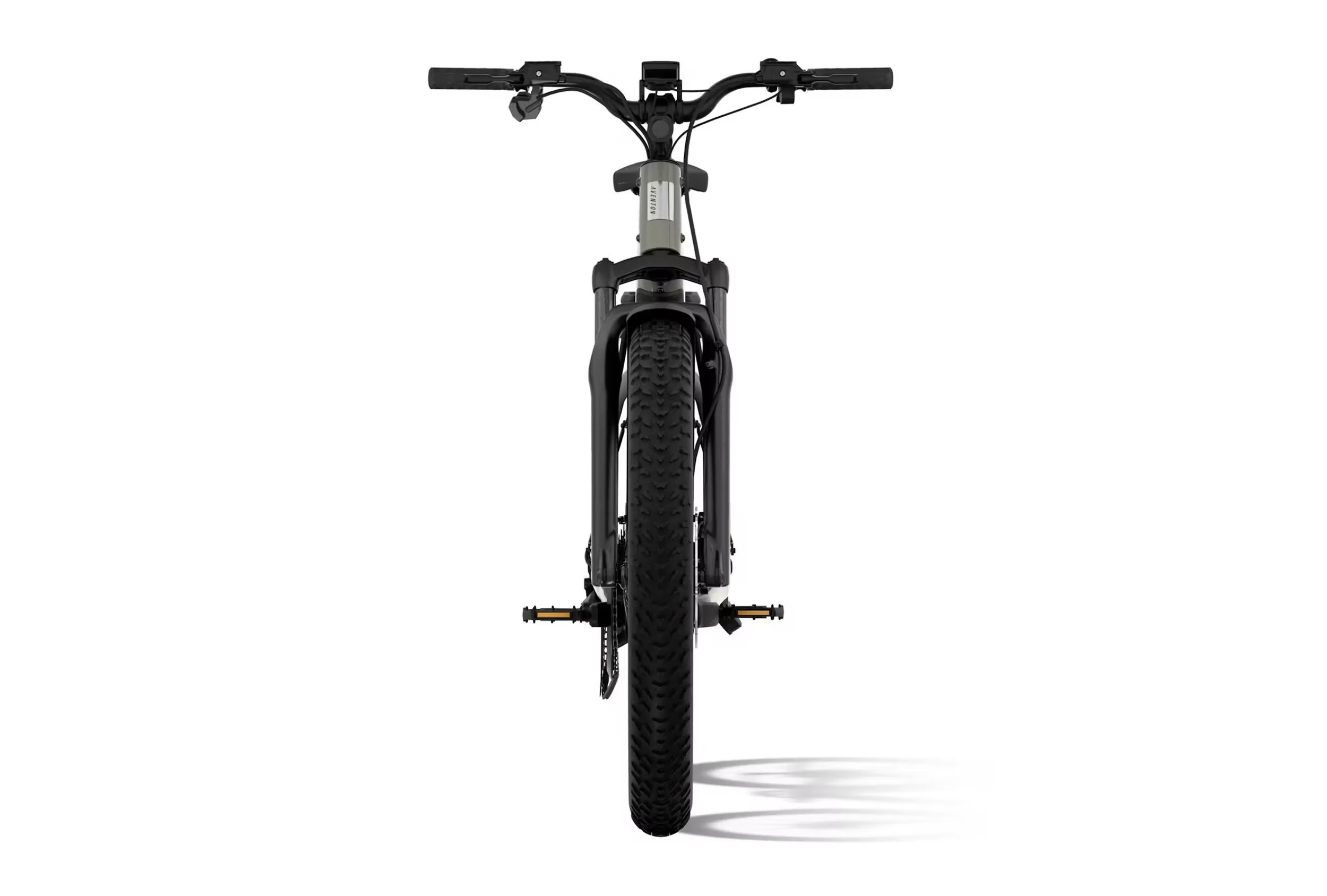

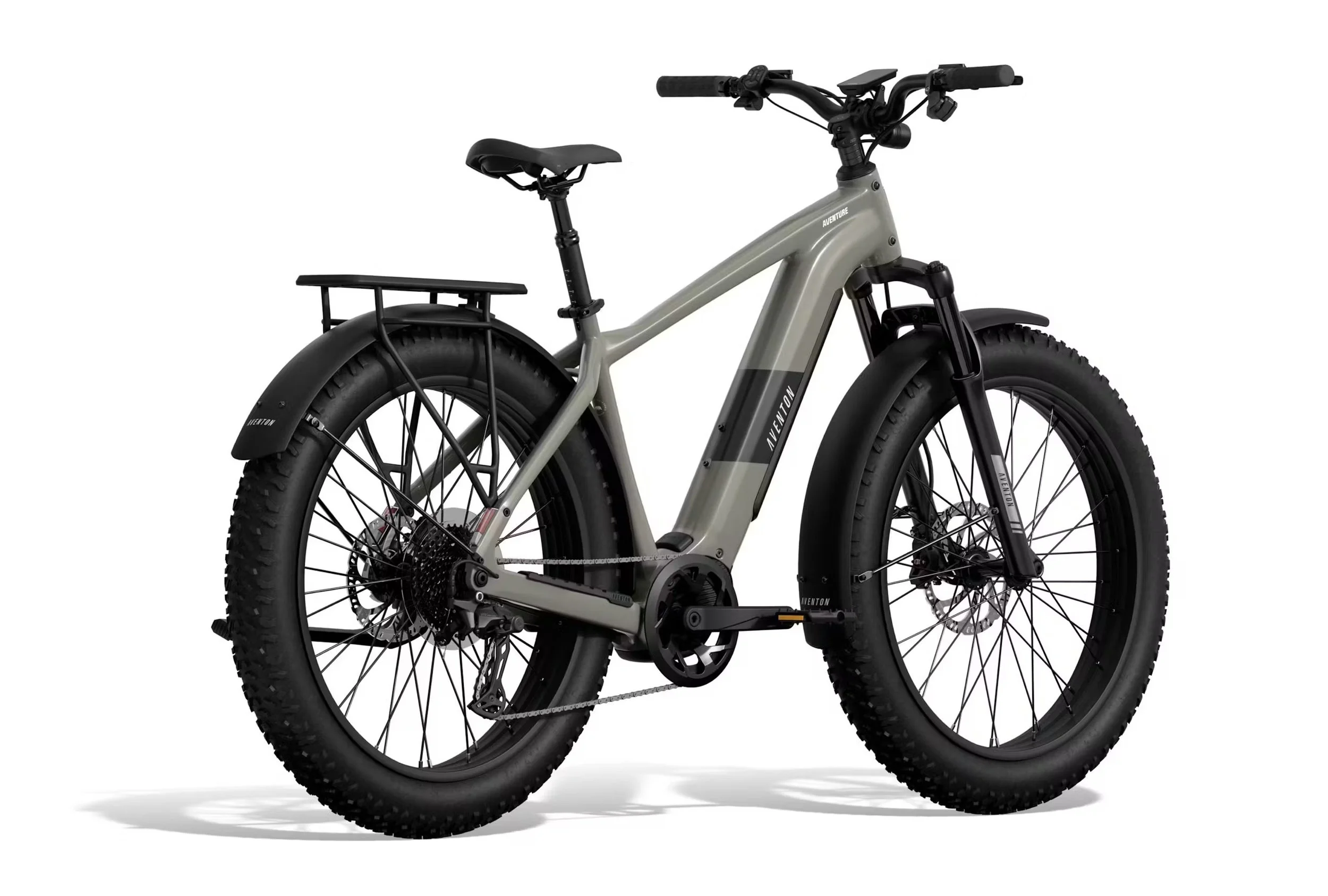

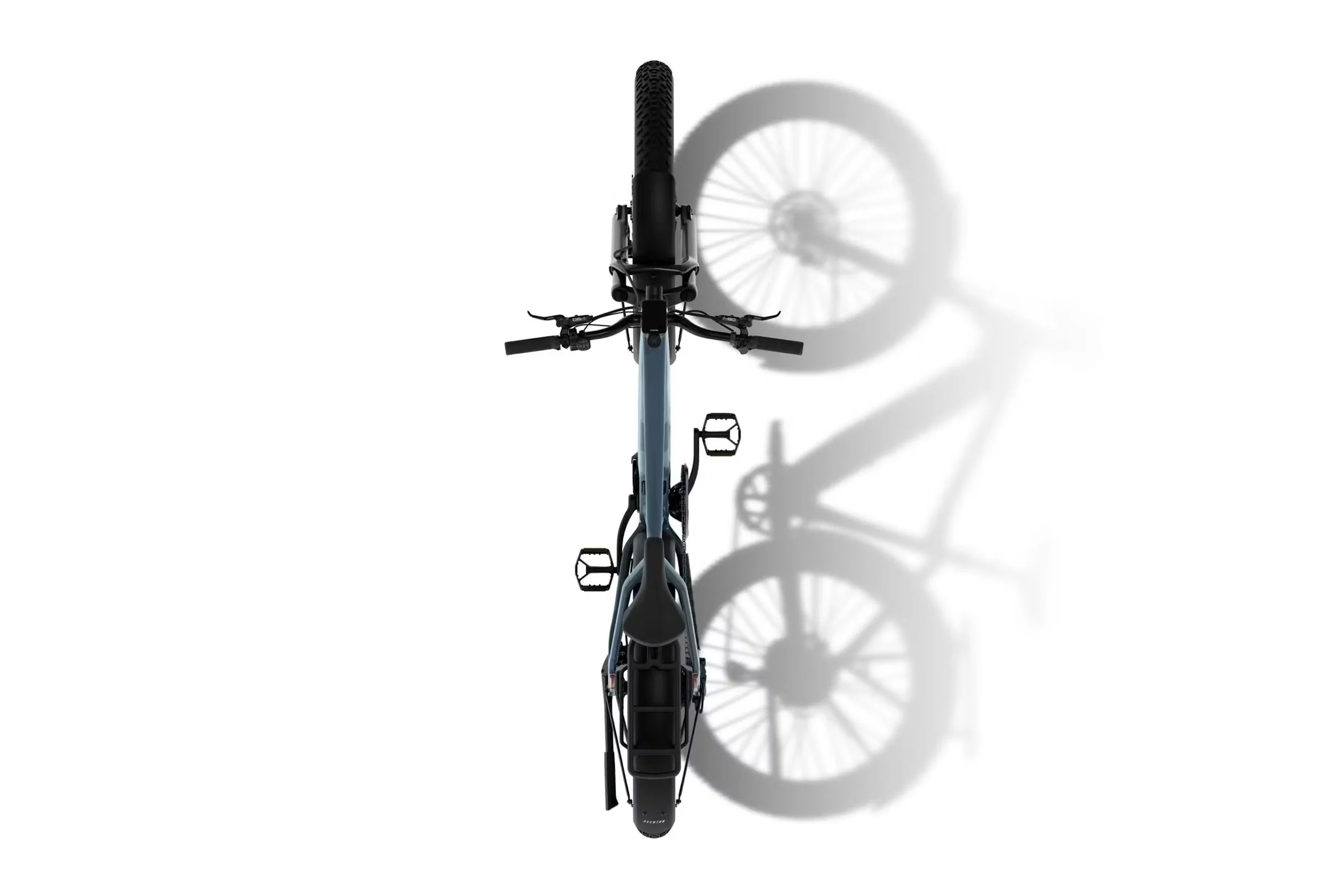

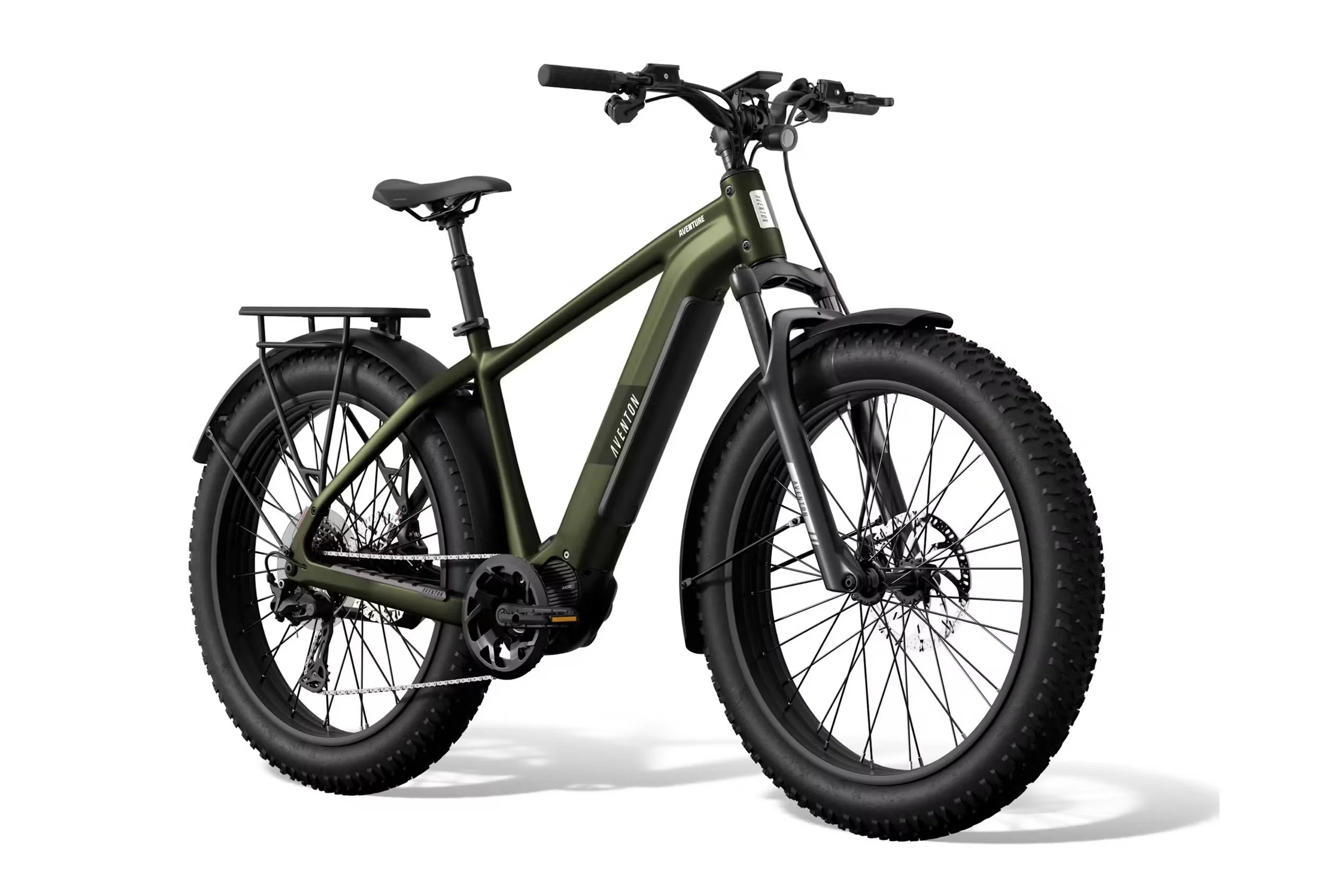

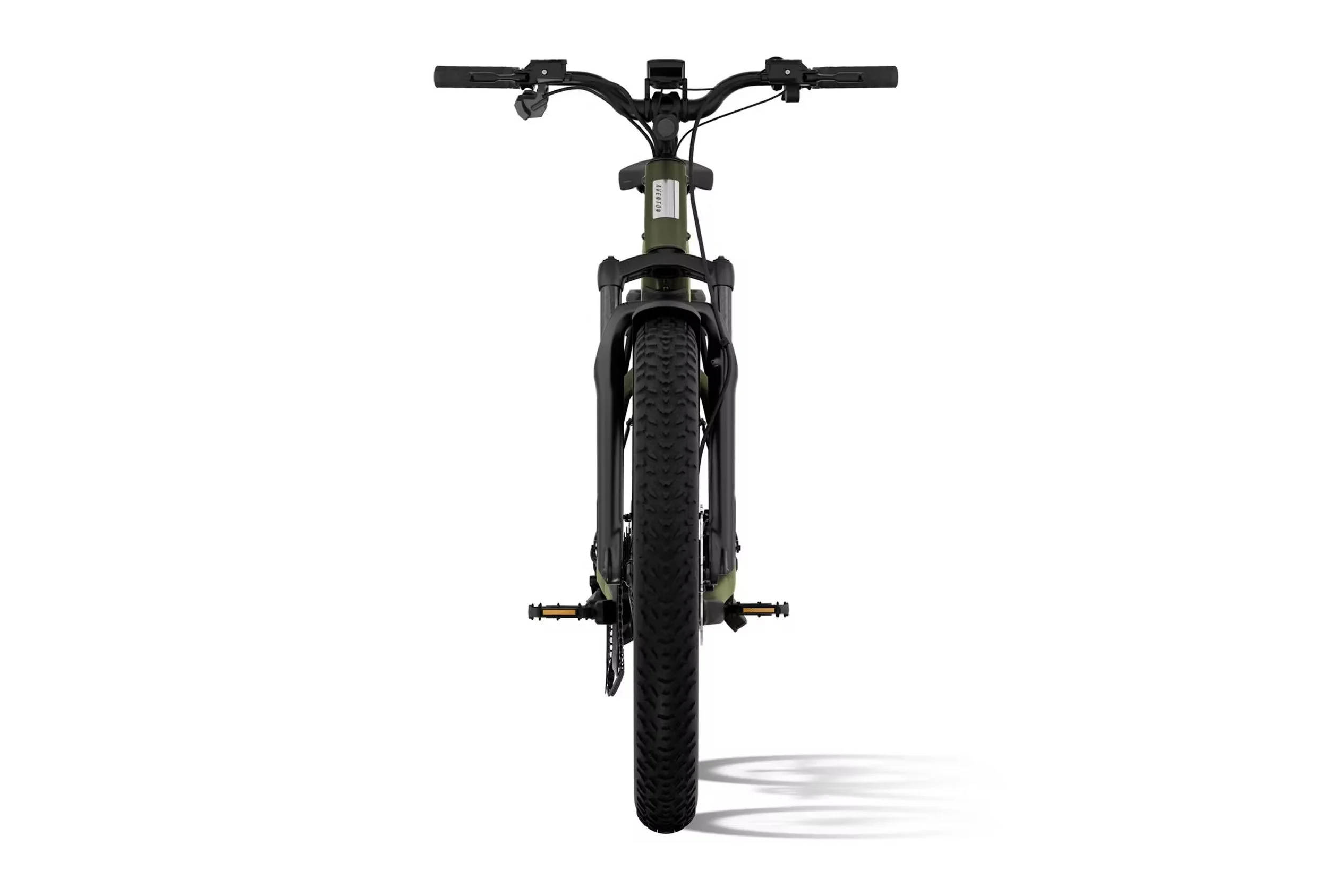

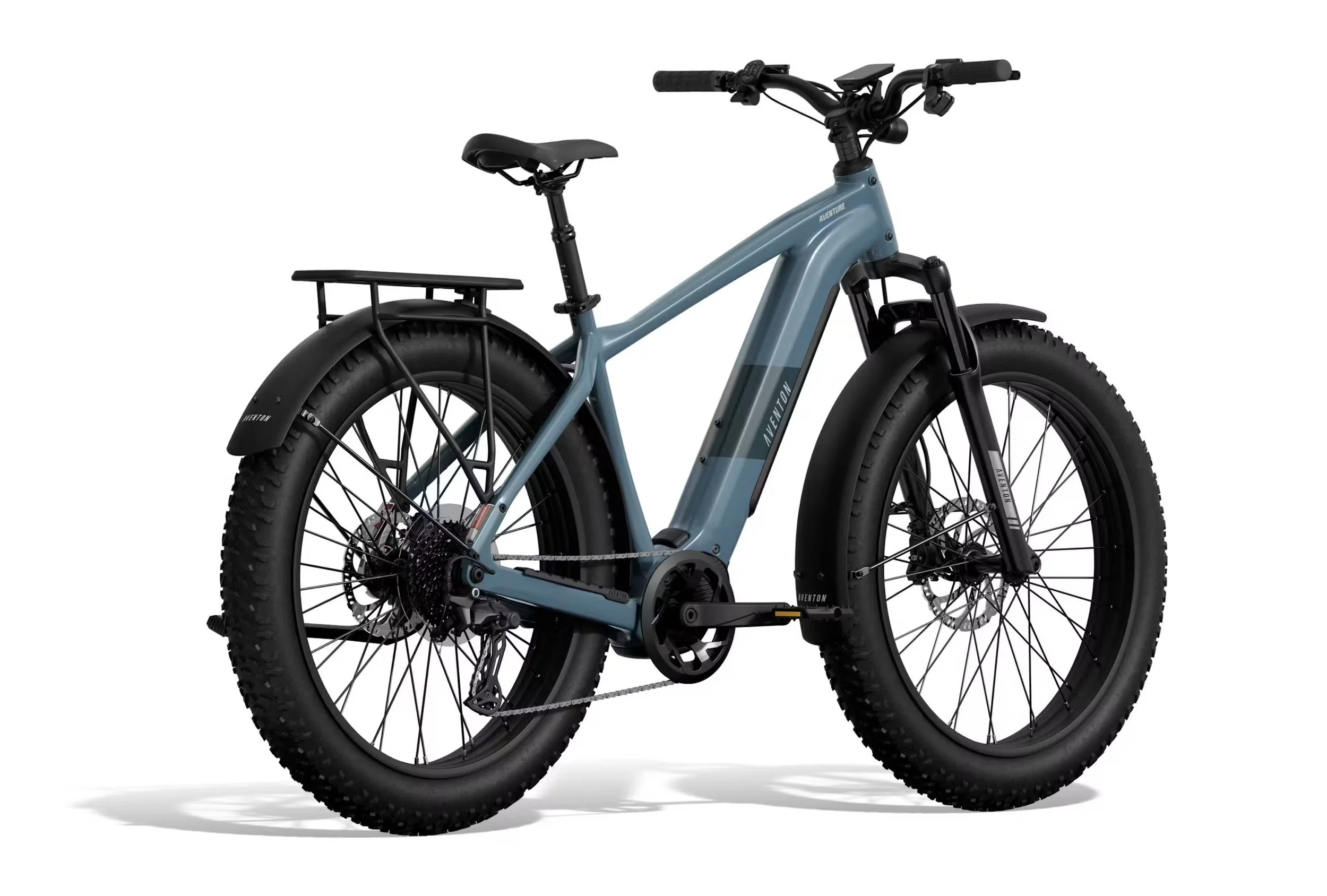

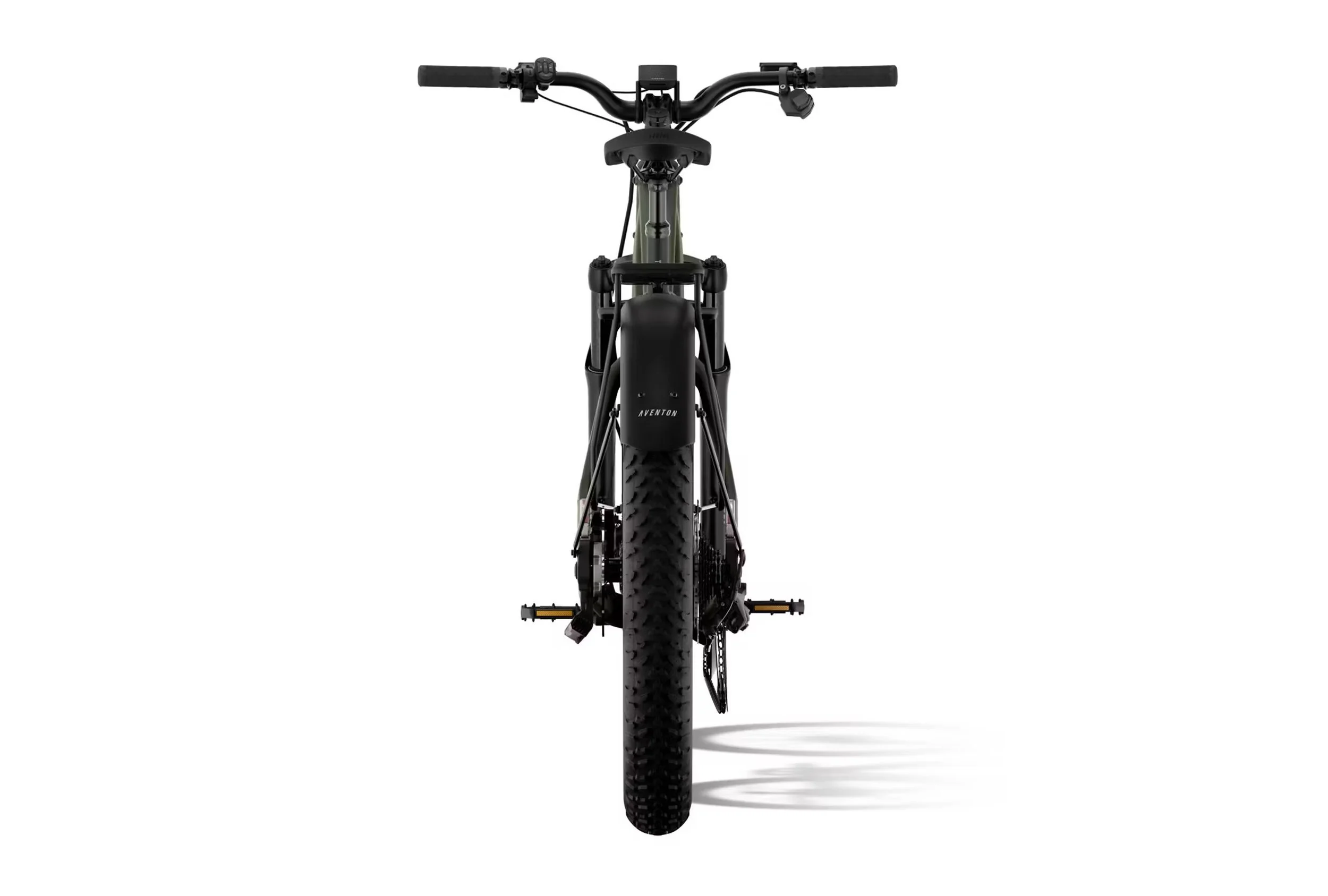

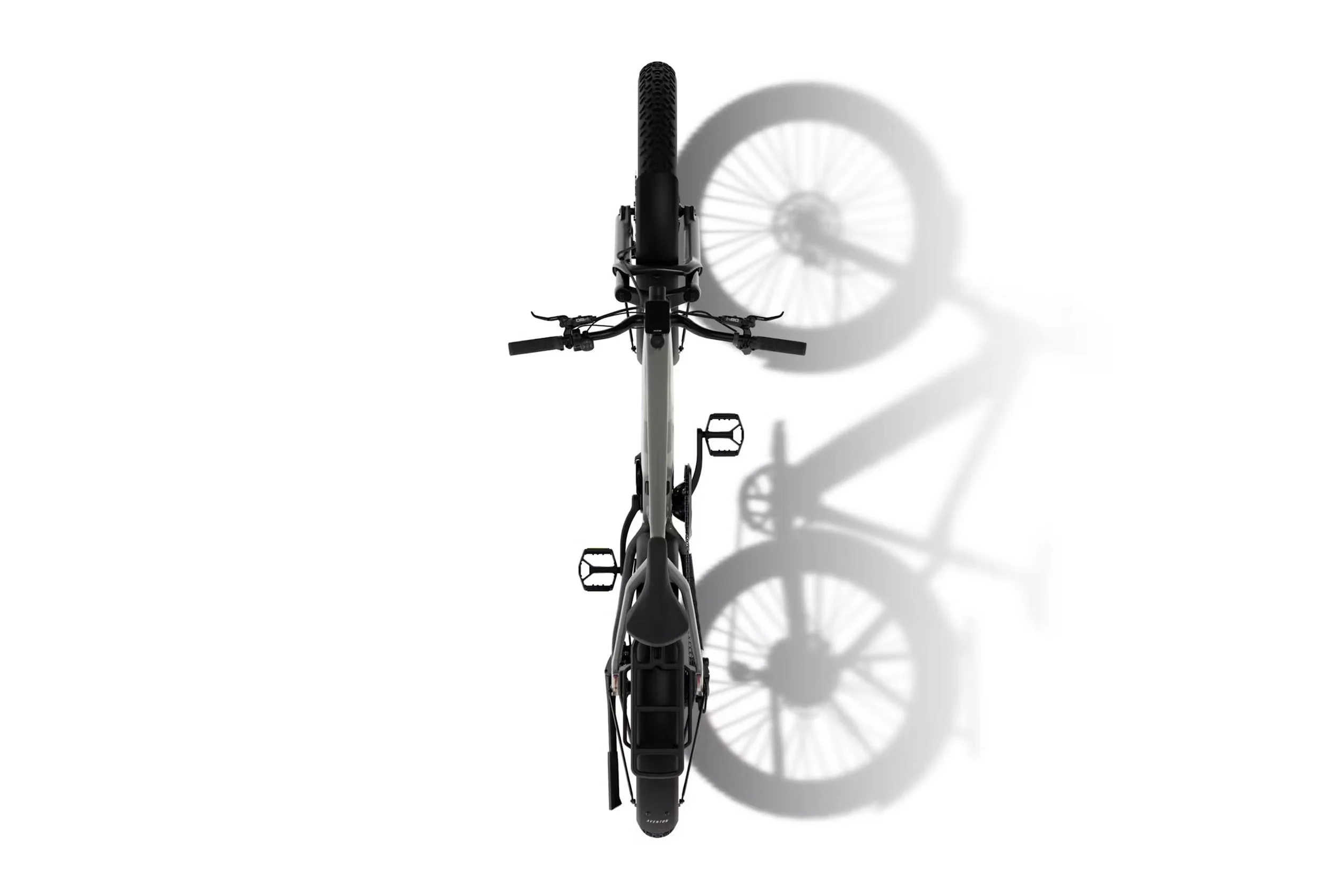

Aventon Aventure M Ebike
Limitless Exploration
Aventure M is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.
Throttle Compatible
Aventure M is a Class 1 eBike with pedal assist, but can easily be converted to Class 2 by installing a throttle and plugging it into the built-in wiring—offering flexibility for different riding needs. (Throttle sold separately)

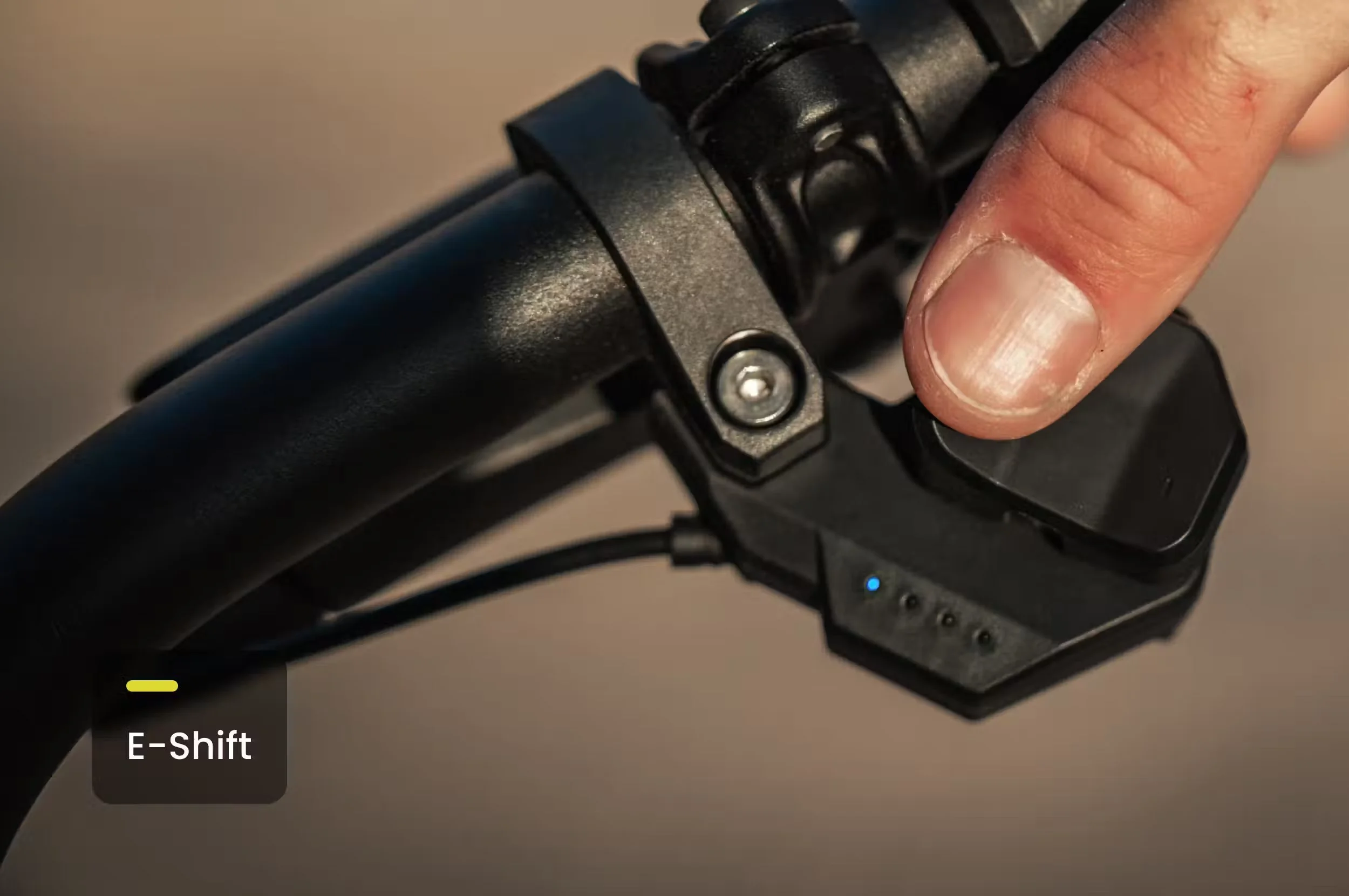

Electronic Shifter
The electronic shifter is powered directly by Aventure M’s main battery, delivering smooth, reliable shifting without the need for separate charging—ideal for ultra consistent, low- maintenance riding.
AutoShift
Automatic shifting is an optional feature that measures speed and cadence to automatically select the ideal gear for the terrain ahead, so you can forget about shifting gears and focus solely on enjoying the ride.
Auto Mode
No need to switch between pedal assist modes. Auto Mode uses internal sensors to adjust motor support based on the terrain’s slope, delivering just the right amount of power exactly when you need it, resulting in a more natural, seamless ride experience.
Theft Deterrence / Startup Password / GPS Tracking
Theft deterrence features like the integrated rear wheel lock, optional startup password, and GPS tracking all help protect your bike— making it harder to move without authorization, easier to locate, and giving you greater peace of mind when parked.
Over-the-Air Updates
Over-the-air updates ensure your bike receives the latest ride features and improvements automatically through the bike’s display, keeping it up to date without a visit to the shop.
Aventure M Ebike Size Chart
| Measurement | Regular | Large |
|---|---|---|
| Frame Size | Regular | Large |
| Rider Height (Range) | 160cm - 175cm (5'3" - 5'10") | 175cm - 195cm (5'10" - 6'4") |
| Wheel Size in Inches | 26" x 4.0" | 26" x 4.0" |
| Seat Tube Length (A) | 430mm (16") | 480mm (18") |
| Top Tube Length Horizontal (B) | 605mm (23") | 643mm (25") |
| Bottom Bracket Drop (C) | 65mm (2") | 65mm (2") |
| Head Tube Length (D) | 140mm (5") | 140mm (5") |
| Head Tube Angle (E) | 67° | 67° |
| Seat Tube Angle (F) | 72° | 72° |
| Rear Chainstay Length (G) | 470mm (18") | 470mm (18") |
| Front Wheel Center (H) | 693.6mm (27") | 731.5mm (28") |
| Wheelbase (I) | 1156mm (45") | 1194mm (47") |
| Reach (J) | 390mm (15") | 428mm (16") |
| Stack Height (K) | 663mm (26") | 663mm (26") |
| Fork Length (L) | 525.3mm (20") | 525.3mm (20") |
| Fork Offset (M) | 43mm (1") | 43mm (1") |
| Trail (N) | 102.5mm (4") | 102.5mm (4") |
