• GENERAL INFO

    Model: Level 3 Step Through Ebike

    Weight: 67lbs

    Total Weight Limit: 300 lbs

    Box Size: 61"x13"x34"

    Rider Height: 4'11" - 6'1"

    Ebike Class: Class 2 Ebike

    Water Resistance: IPX5

    Range: Up to 70 Miles

    Battery Safety Certifications: Certified to UL 2271

    Safety Certifications: UL Safety Certified
UL 2849

    Ideal Use: Commuting

    Pedal Assist: 3 Levels (with Ride Tune Customization)

    FRAMESET

    Frame: 6061 Aluminum, Gravity Cast Front Triangle

    Fork: Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

    Rear Spacing: 142mm

    Fork Spacing: 110mm

    Frame Style: Step-Through

    WHEELSET

    Front Wheel: 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black

    Rear Wheel: 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black

    Tires: Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

    EBIKE SYSTEM

    Motor: 36V, 500W (sustained), 864W (peak)

    Motor Torque: 60Nm

    Display: Aventon BC280

    Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

    Battery Weight: 8.7lbs

    Controller: 36V, 24A

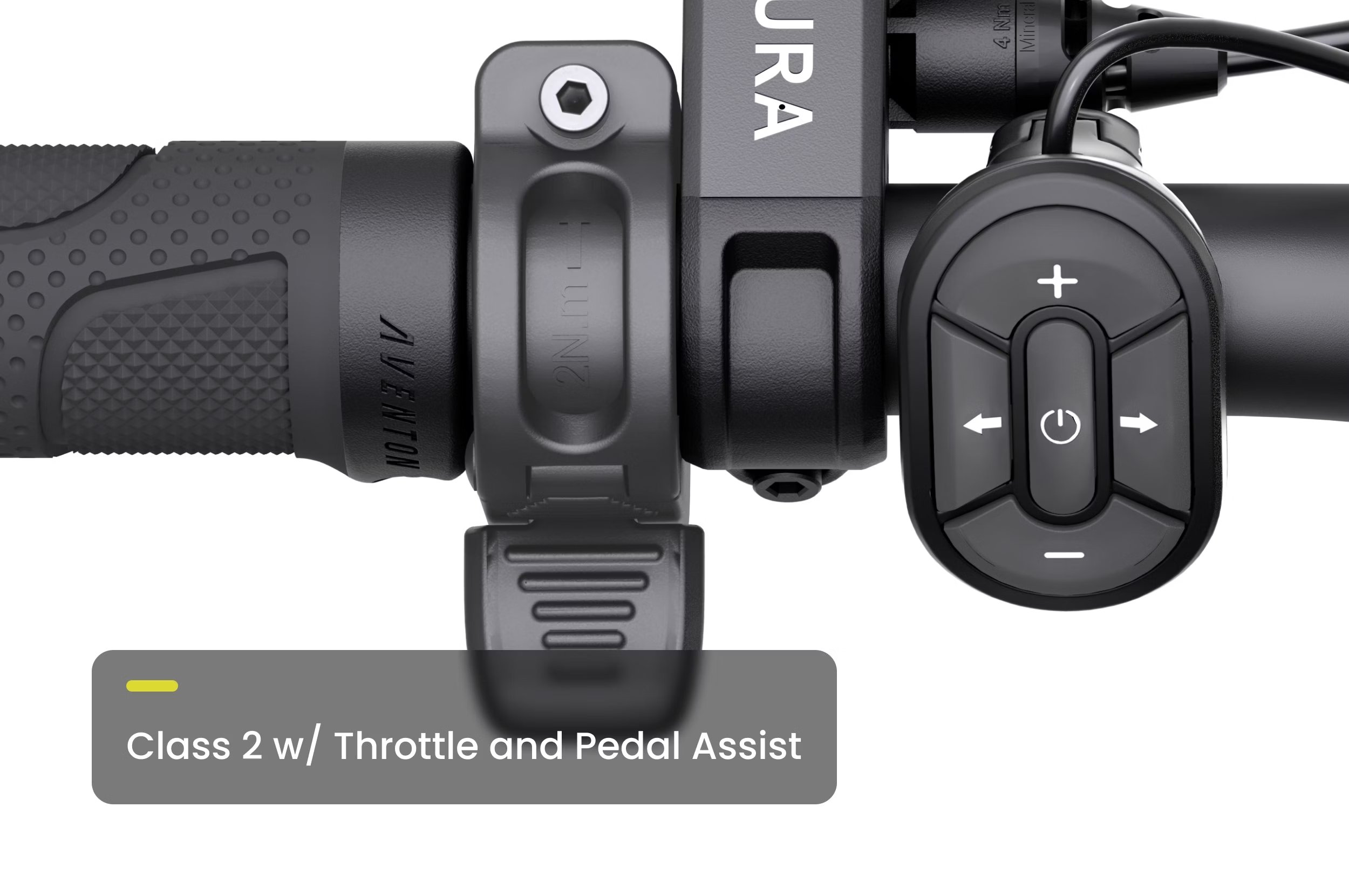

    Throttle: Aventon LH Handlebar Mounted

    Sensors: Double Sided Bottom Bracket Torque Sensor

    Charger: 36V Output: 42V/ 4A

    Charging time from 0% to 100%: 5 hours

    Lights: Front and rear lights integrated

    Speed: Class 2

    BRAKES

    Front Brake: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

    Rear Brake: Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

    Front Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

    Rear Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

    DRIVETRAIN

    Rear Derailleur: Shimano Altus RD-M310

    Shifter: Shimano 8 Speed Trigger SL-M315-8R

    Chain: 7/8 speed 120L

    Cassette: 12-32T / 8 Speed Shimano CS HG200-8

    Chainring: 48T

    Chainring BCD: 104

    Crankset: 3pc, 170mm crank arm

    Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

    Pedals: 9/16" Composite Platform

    COCKPIT

    Saddle: Aventon Saddle

    Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel

    Seatpost Clamp: 34.9mm

    Handlebars: Aluminum 31.8mm, 680mm

    Grips: Aventon Lock on grips

    Headset: Sealed Bearing Headset

    INCLUDED ACCESSORIES

    Rear Rack Weight Limit: 60lbs

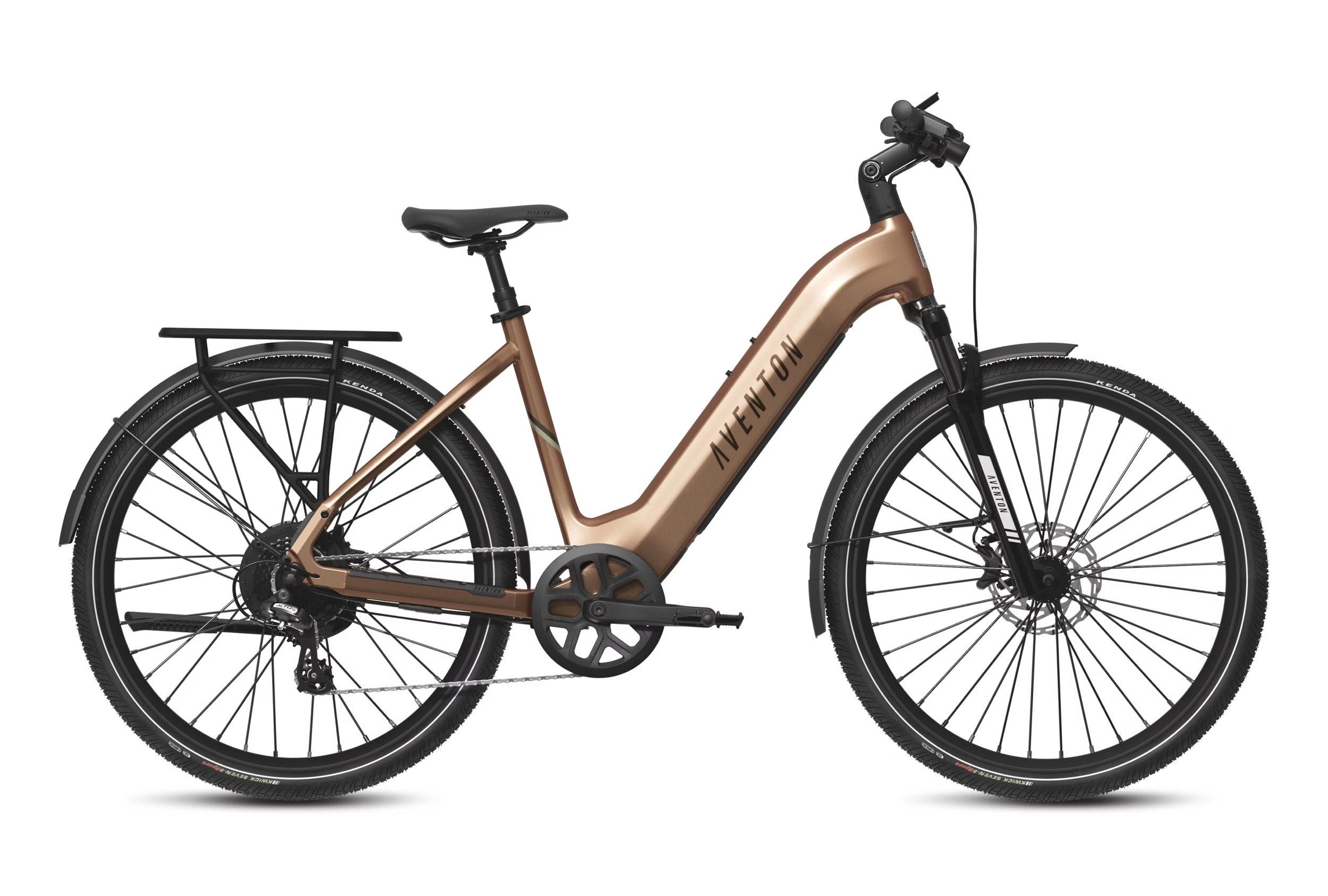

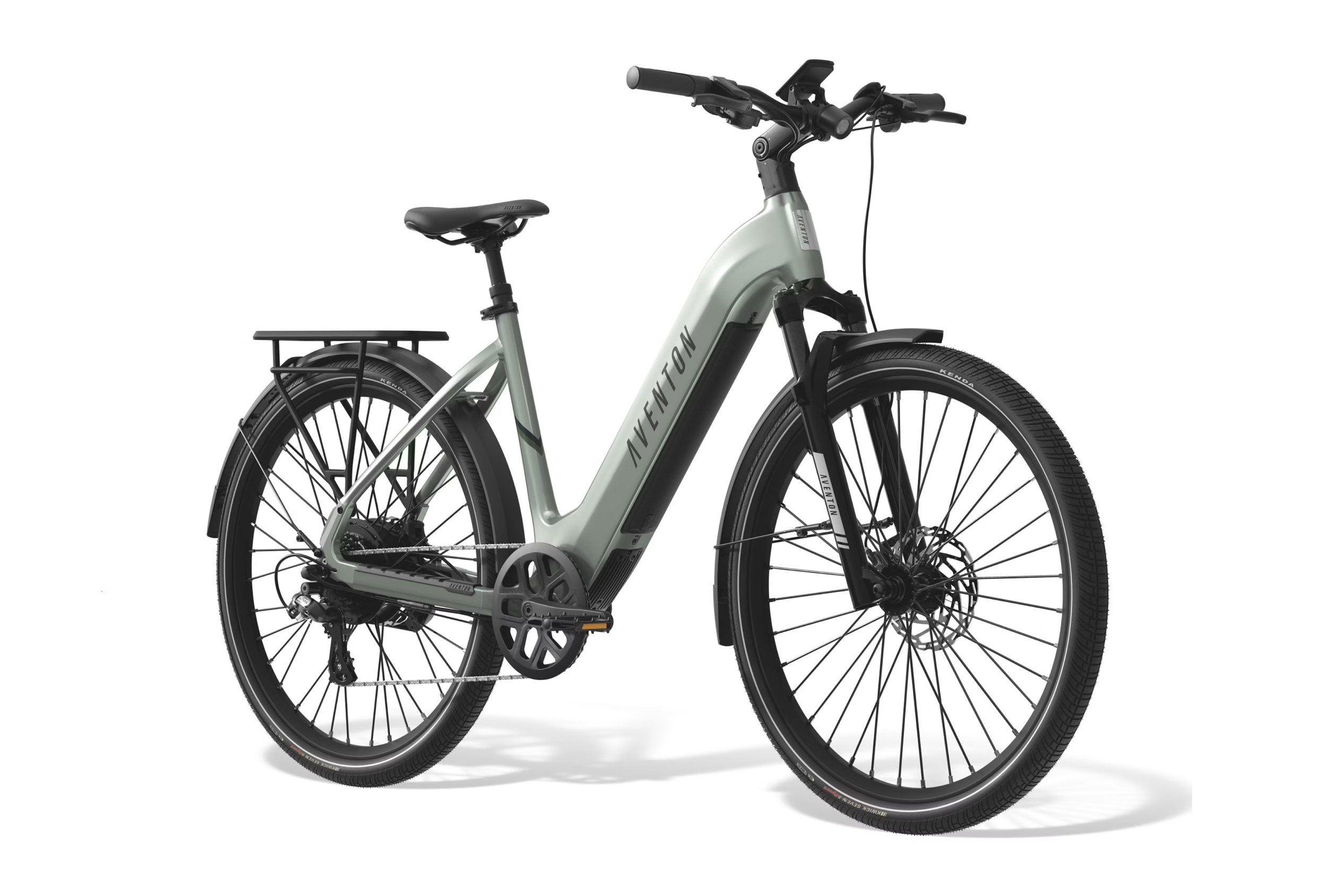

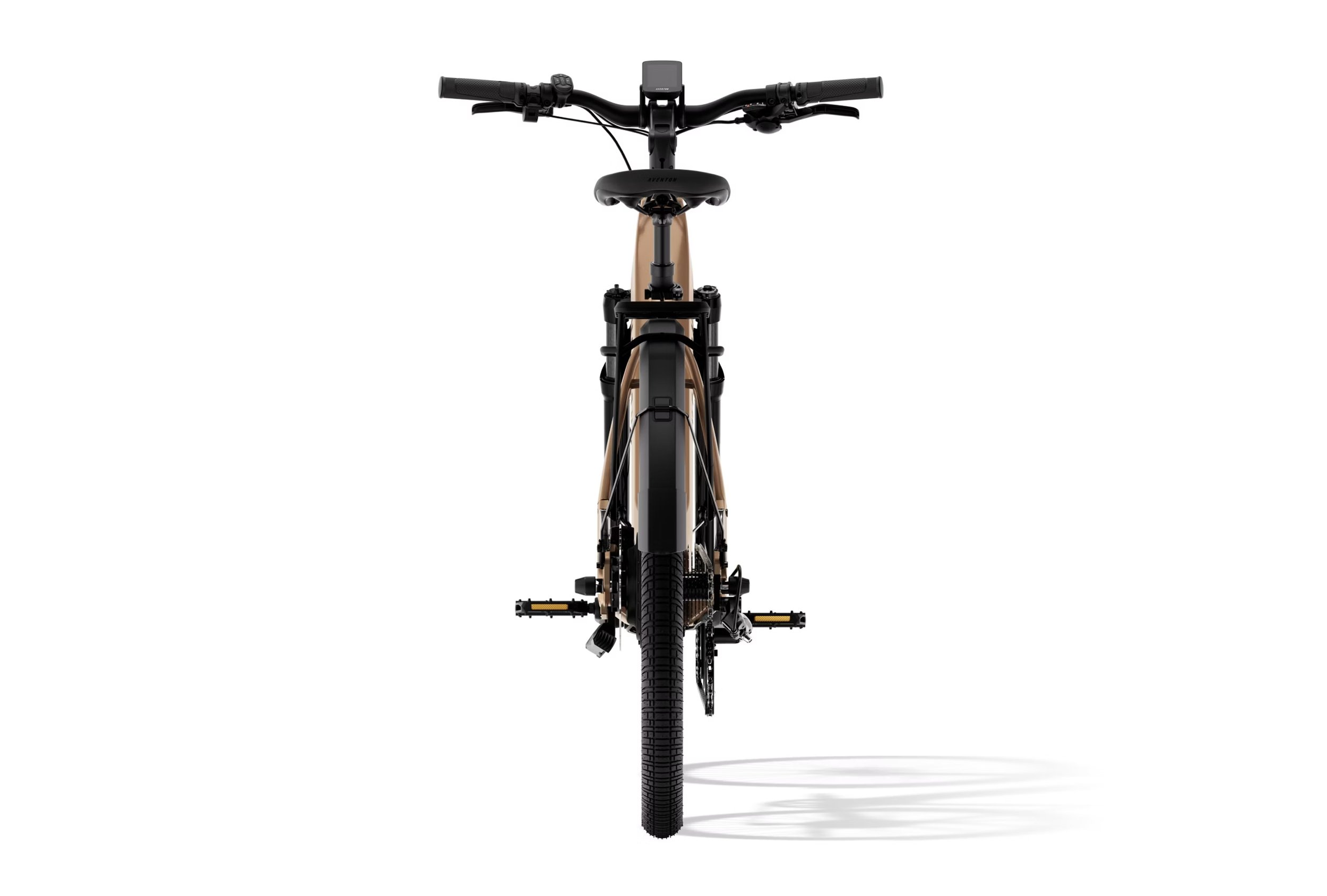

 Level 3 Step Through Ebike

Turn daily drives into daily rides with this do-it-all commuter

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3.

Enhanced Security meets Advanced Technology

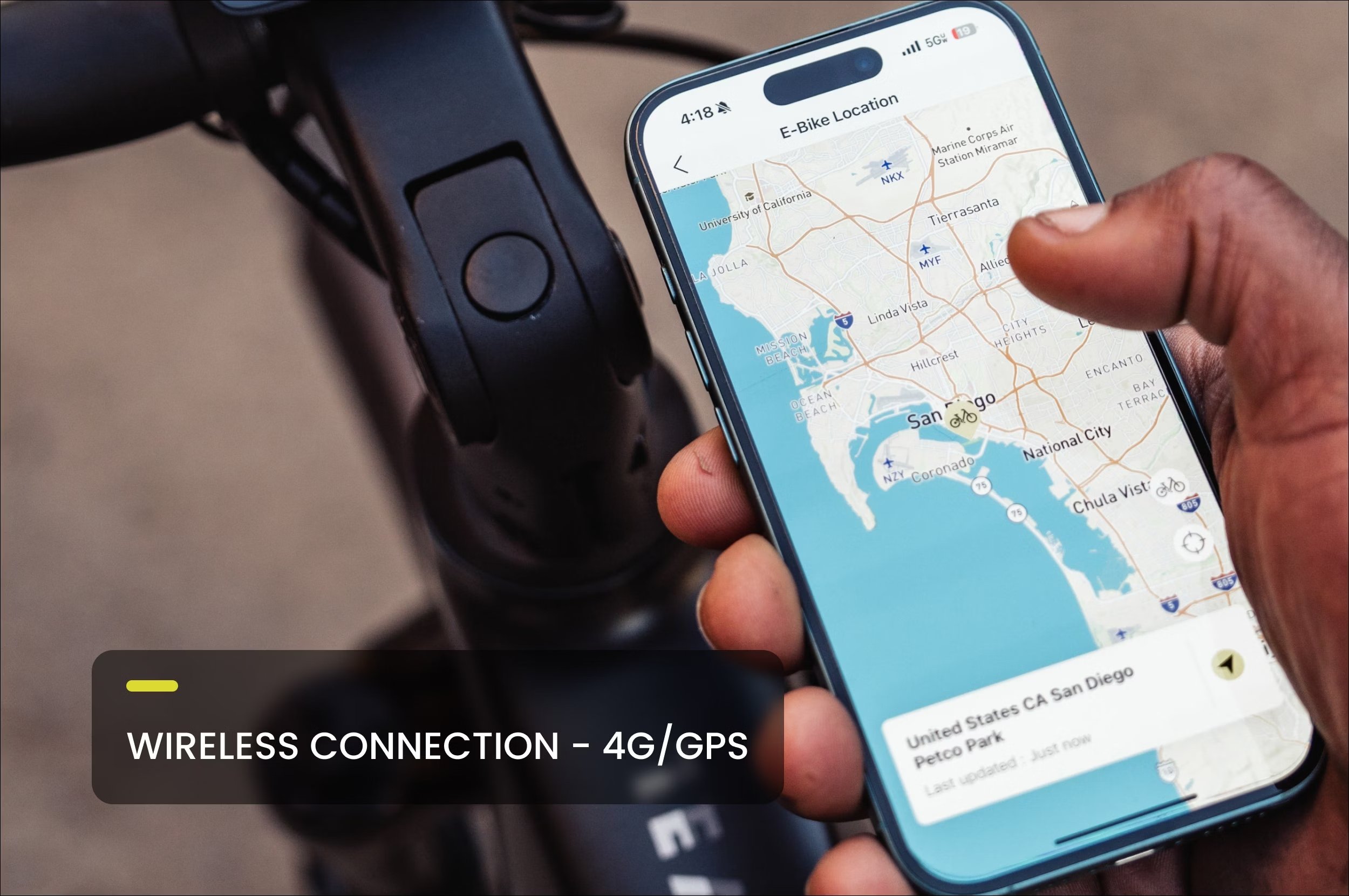

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock , Geofencing and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time.

Remote Lock and Geofencing

The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

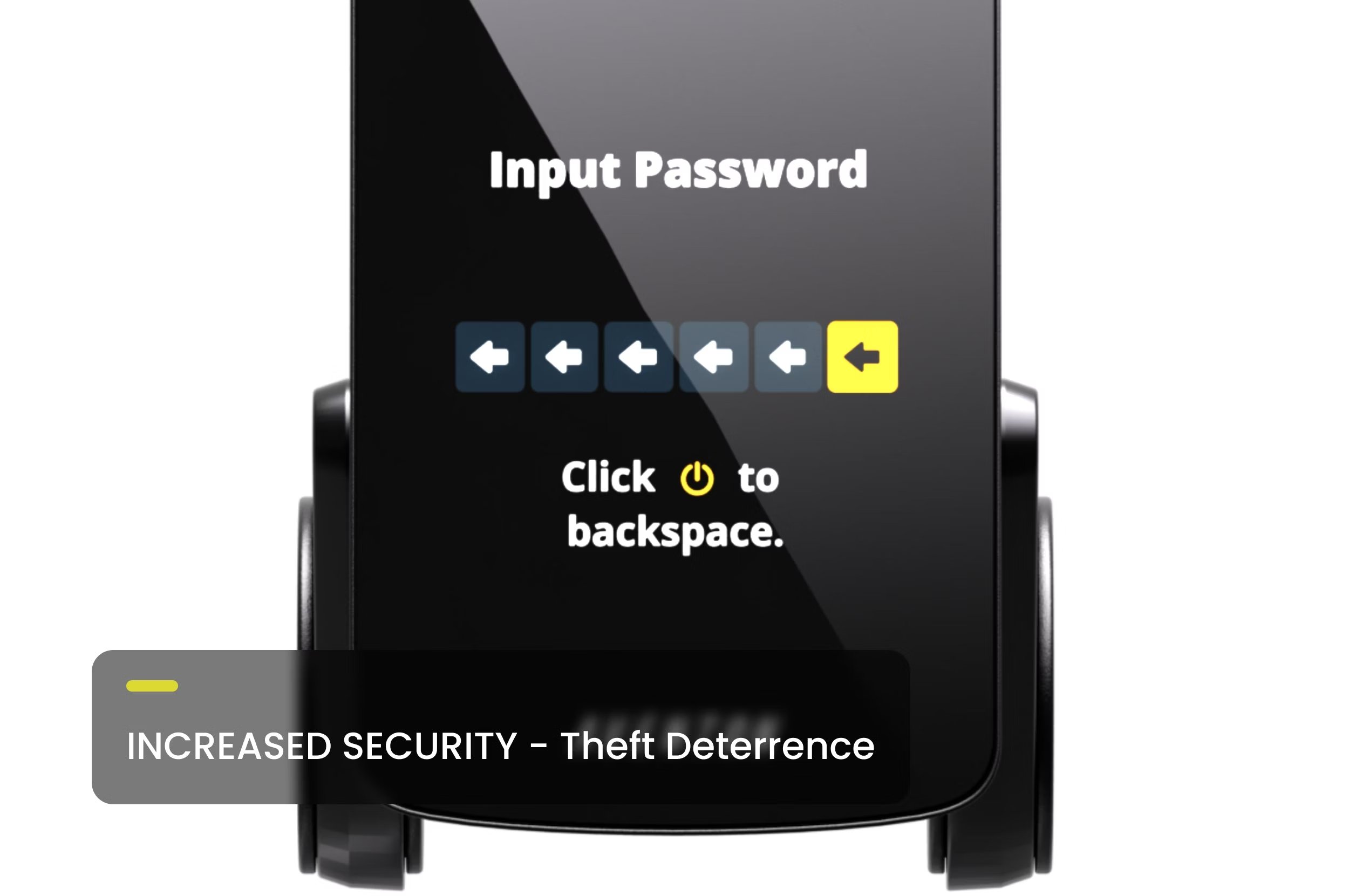

Startup Password and Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

Electronic Rear Wheel Lock

Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended.

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

Ride Tune

Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Level 3.

Over the Air Updates

Stay in the know while on the go. Enjoy optimal performance with intelligent overthe-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

Rack and Fenders

Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you're heading out for a picnic or heading home from work!

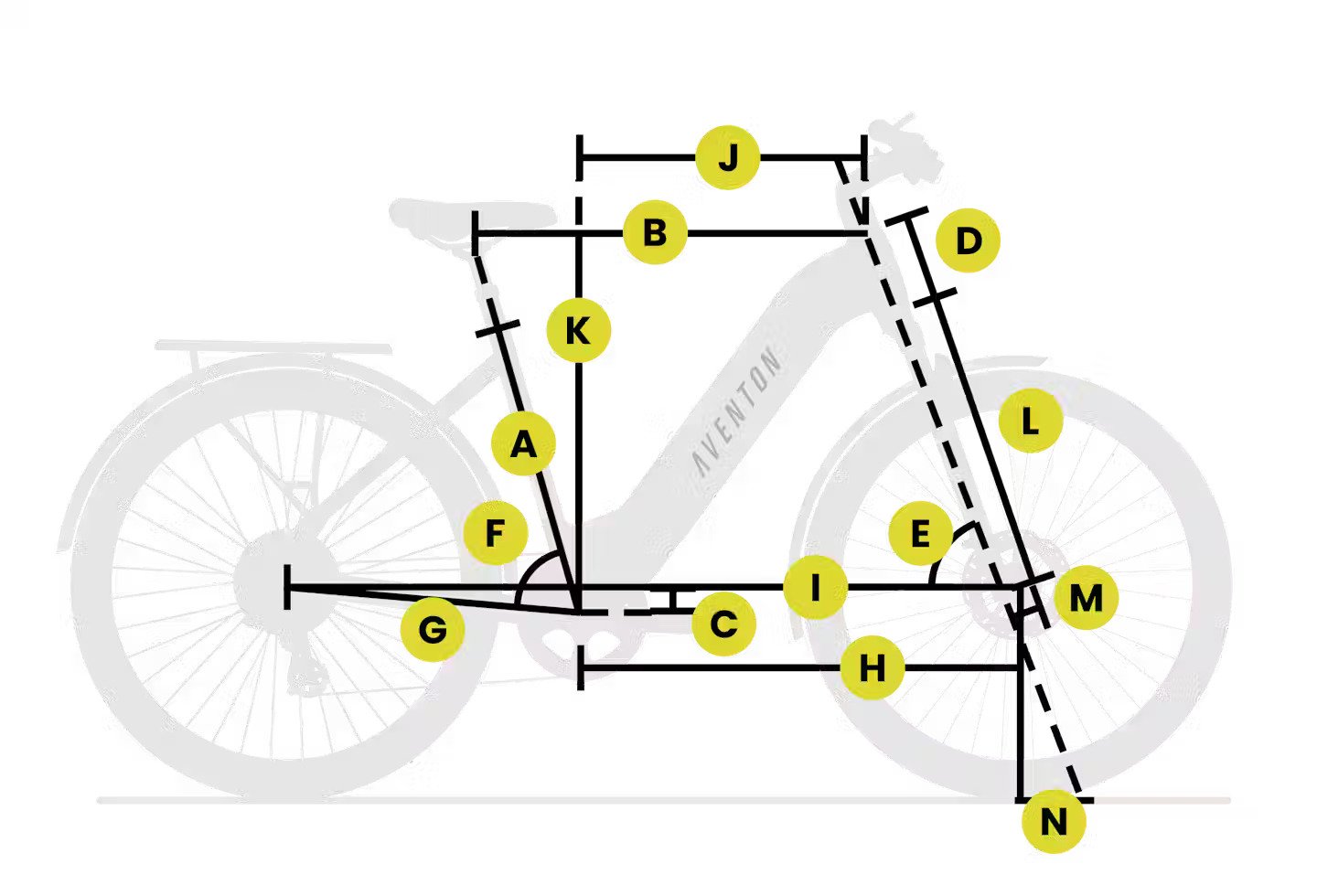

Level 3 Step-Through Ebike Size Chart

Level 3 Step-Through Ebike Size Chart

Regular Large
Rider Height (Range)150cm - 170cm (4'11" - 5'7")170cm - 185cm (5'7" - 6'1")
Wheel Size in Inches27.5"27.5"
Seat Tube Length (A)400mm (15")480mm (18")
Top Tube Length Horizontal (B)607mm (23")634mm (25")
Bottom Bracket Drop (C)50mm (2")50mm (2")
Head Tube Length (D)130mm (5")130mm (5")
Head Tube Angle (E)70°70°
Seat Tube Angle (F)74°74°
Rear Chainstay Length (G)480mm (18")480mm (18")
Front Wheel Center (H)675mm (26")701mm (27")
Wheelbase (I)1150mm (45")1176.8mm (46")
Reach (J)423mm (16")450mm (17")
Stack Height (K)610mm (24")610mm (24")
Fork Length (L)480mm (18")480mm (18")
Fork Offset (M)43mm (1")43mm (1")
Trail (N)81mm (3")81mm (3")
Stand Over Height442mm (17")442mm (17")
