General Info
Weight: 61lbs
Total Weight Limit: 300 lbs
Rider Height: Medium - 5'3"-5'10". || Large - 5'10"-6'4". || Extra Large - 6'4"-6'7"
Ebike Class: Class 1 (Convertible to Class 2 and/or Class 3)
Water Resistance: Bike - IPX6 // Motor - IP67
Range: Up to 110 Miles
Safety Certifications: UL Safety Certified UL 2849
Battery Safety Certifications: Certified to UL 2271
Frameset
Frame: 6061 Aluminum
Fork: 100 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, 15x100 mm Thru Axle, 43 mm Offset, Tapered Steerer Tube
Rear Spacing: 135mm
Fork Spacing: 100mm
Wheelset
Front Wheel: 27.5" Double Wall Aluminum, 36H
Rear Wheel: 27.5" Double Wall Aluminum, 36H
Tires: Kenda K1052, 27.5x2.2"
Ebike System
Motor: Aventon Ultro S Mid-drive Motor, 100Nm Motor Torque, 750W Peak Power
Motor Torque: 100Nm
Motor Power: 750W Peak
Display: A280 Center Display
Battery: Removable Lithium-Ion. 36V, 20Ah, 800Wh, Samsung 21700 58E cells
Battery Weight: 8.7lbs
Throttle: Compatible, Not Included
Charger: 42V 4A charger
Charging time from 0% to 100%: 5 hours
Lights: Front and rear lights integrated
Smart Features: Uphill Start Assist, E-Shift, Autoshift, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification
Brakes
Front Brake: Tektro HD-M3120 2-Piston Hydraulic Disc Brakes
Rear Brake: Tektro HD-M3120 2-Piston Hydraulic Disc Brakes
Front Brake Rotor: 180mm 6 bolt
Rear Brake Rotor: 180mm 6 bolt
Brakes: Hydraulic
Drivetrain
Rear Derailleur: Shimano Cues 10-Speed
Chainring: 48T
Crankset: 165mm ISIS Splined
Pedals: 9/16" Composite Platform
Shifter: E-Shifter
Chain: 9/10/11 speed 126L
Cassette: Shimano Cues 10-Speed 11-39T
Cockpit
Saddle: Aventon Saddle
Seatpost: Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length
Seatpost Clamp: 34.9mm
Handlebars: 31.8mm, 680mm Width, 30mm Rise
Grips: Aventon Lock on grips
Included Accessories

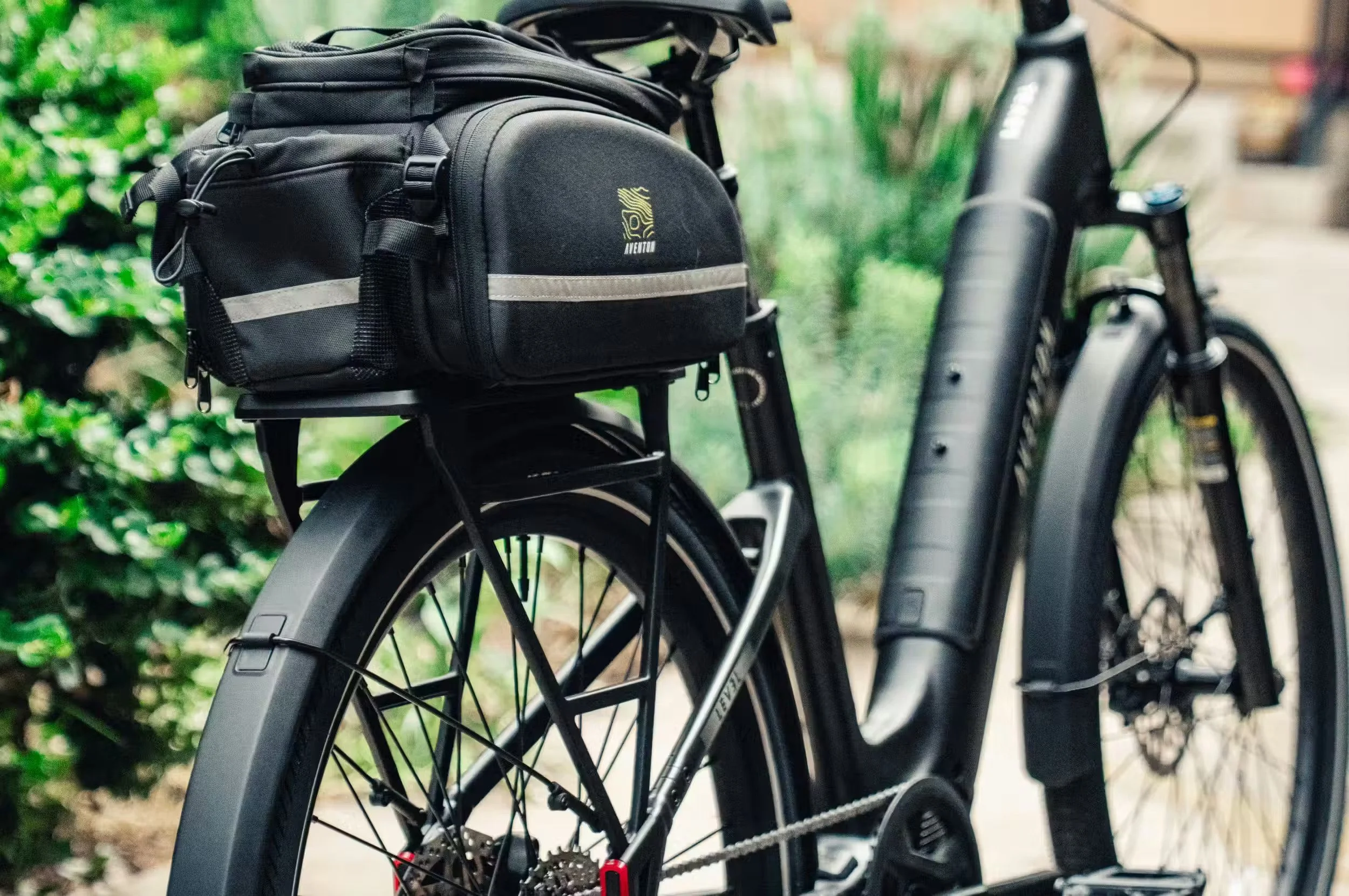

Rear Rack: Included
Fenders: Included
Integrated Lights: Included

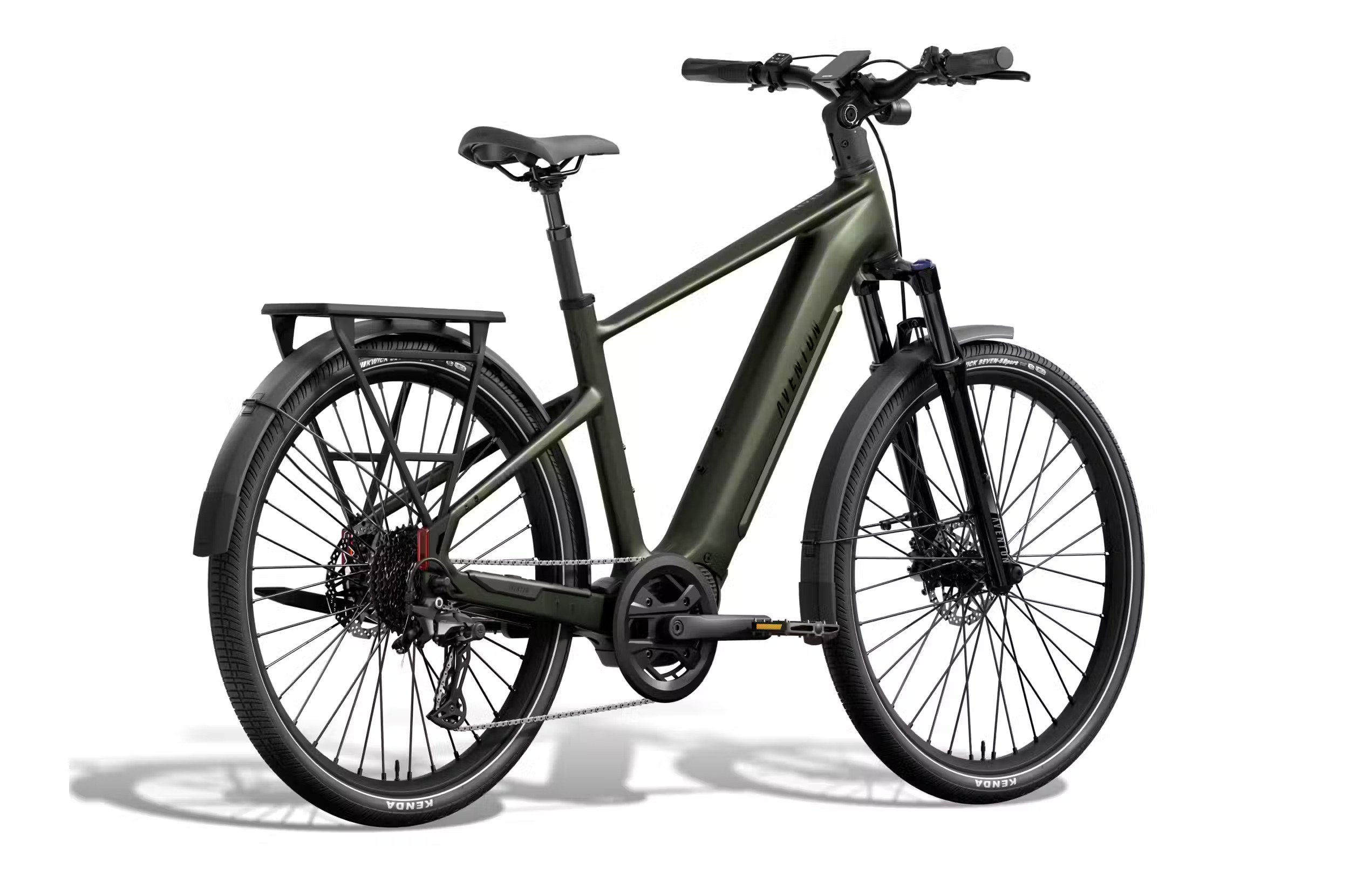

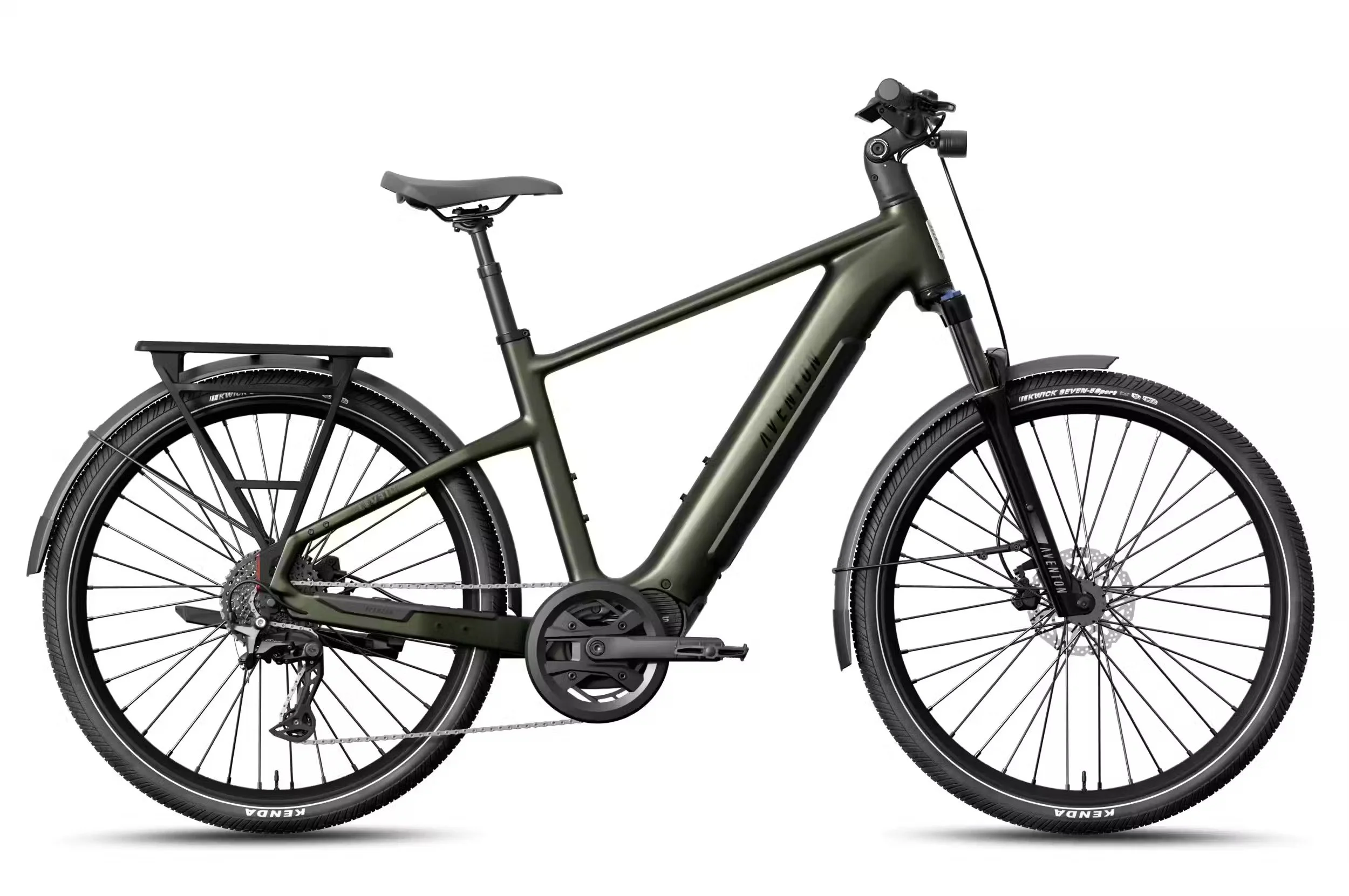

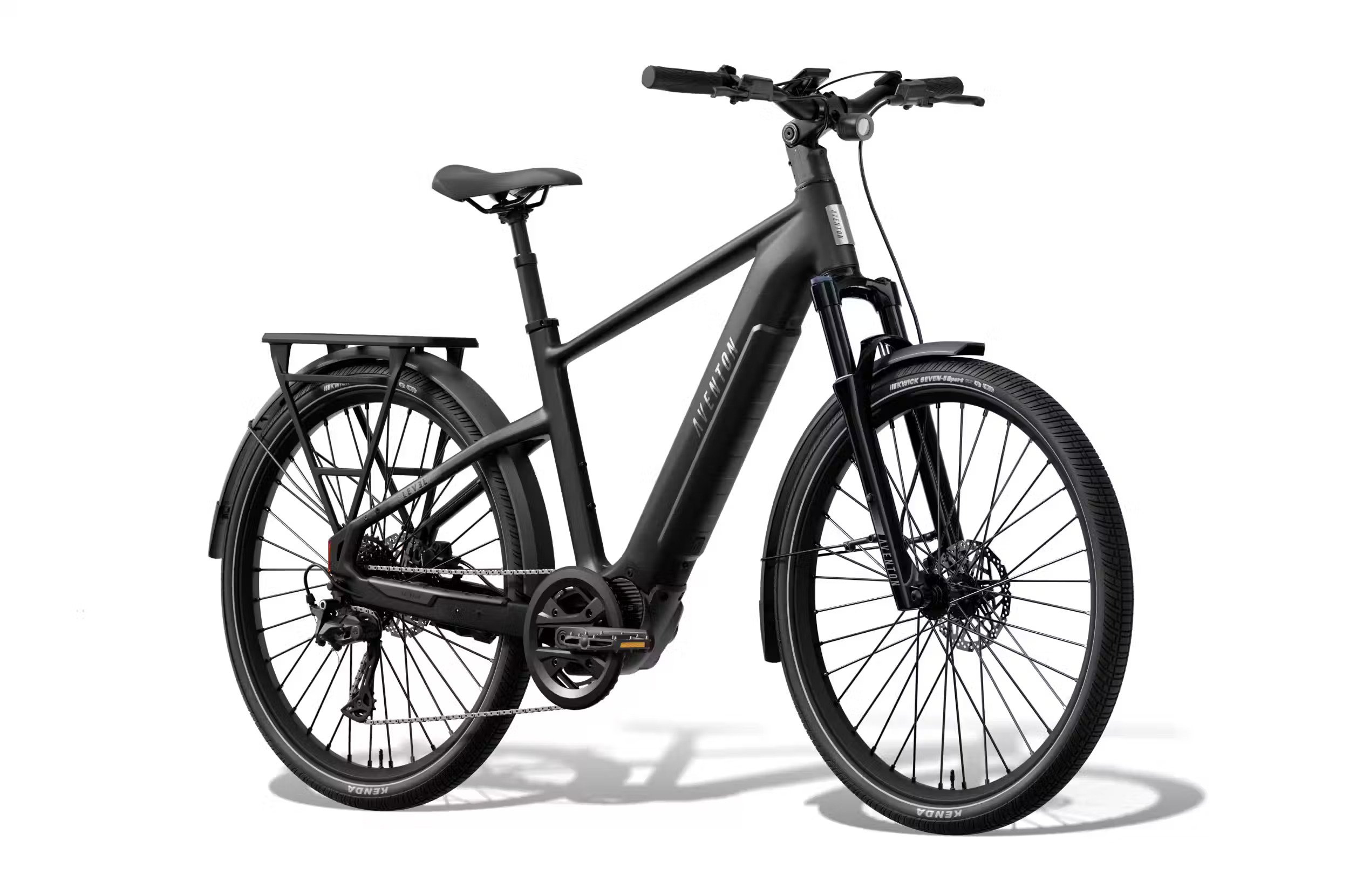

Aventon Level 4 ADV Ebike
Mid-drive performance meets reliable commuter capability.
The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.
Take Your Commute Further
Our legacy of reliable of commuter bikes extends into the Level 4 ADV. Introducing the Ultro S mid-drive to our lineup, the Level 4 ADV offers an enhanced package of tech features neccessary and helpful to commuters, urban riders, and weekend fitness enthusiests.
Power & Range for Daily Riding
Level 4 ADV offers top-tier power with extended range for long commutes, weekend adventures, and everything in between

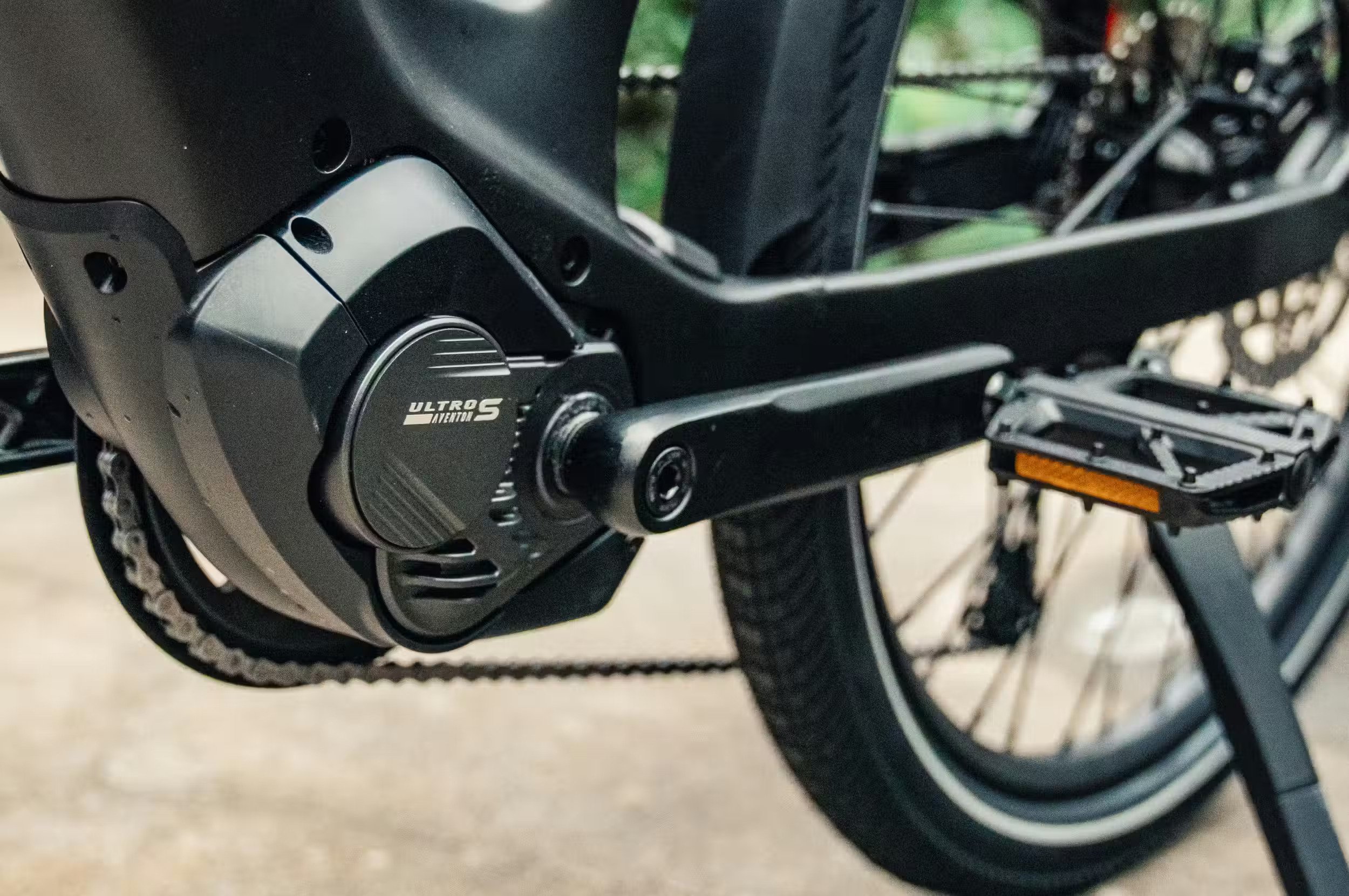

Ultro S Mid-Drive Motor (100Nm Torque)
Refined Power for Urban Adventure
The Ultro S mid-drive motor is positioned closer to the bike’s center of gravity for improved balance and handling. Unlike a hub motor, the mid-drive utilizes the bikes gearing to achieve superior climbing efficiency and extended battery range. With 100Nm of torque and Ride Tune customization, you'll experience a natural, smooth power ramp-up that feels like an extension of your own legs—making steep hills and city adventures feel effortless.
800Wh Keyless Removable Battery
Easy Battery Access
With the 800Wh keyless removable battery, not only can you ride further than ever, but you can easily remove and transport your battery for convenient charging or added security at the press of a button.
Up to 110 Miles Range
Take Your Adventure Even Further
Don't let your battery be the reason your rides are cut short. With up to 110 miles of range, the Level 4 ADV is built to handle all day adventures and long, demanding commutes with ease.
Suspension Fork & Seatpost
100mm of Suspension and Suspension Seatpost
Enjoy unmatched comfort on your commutes thanks to the 100mm suspension fork to absorb potholes and rough roads, while the added suspension seatpost ensures your comfortable and refreshed everytime you ride.

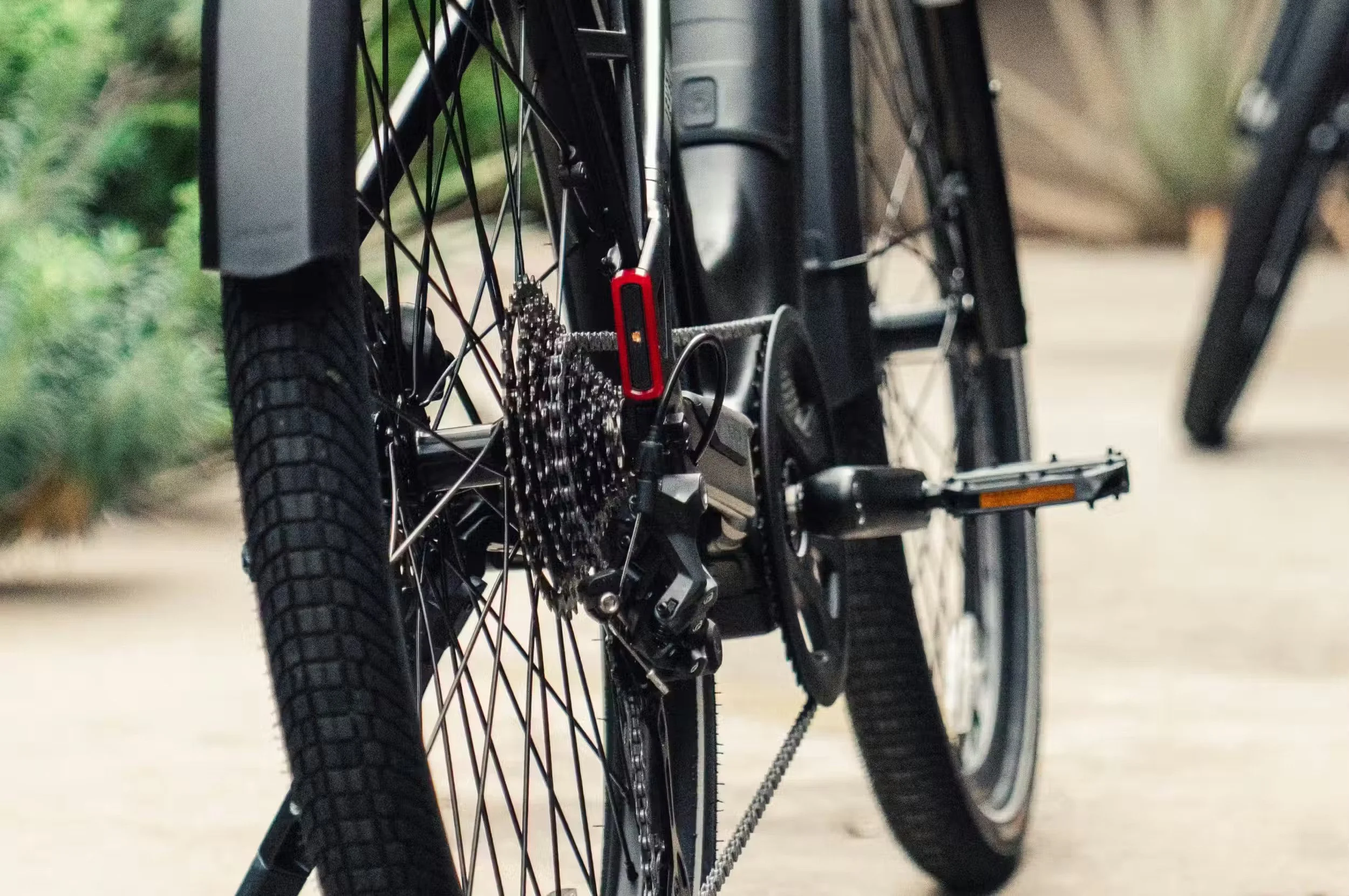

E-Shifter & Customizable AutoShift
Not Autopilot, But the Next Best Thing
The Aventon E-Shifter offer simple and precise shift quality, while the AutoShift functionality ensures riders are always in the opitmal gear for their preferred cadence and riding speed. No more mis-shifts or gearing uncertainty.
E-Shifter & Customizable AutoShift
Not Autopilot, But the Next Best Thing
The Aventon E-Shifter offer simple and precise shift quality, while the AutoShift functionality ensures riders are always in the opitmal gear for their preferred cadence and riding speed. No more mis-shifts or gearing uncertainty.
Connected Intelligence for Confident Commuting
The Smart Security features on the Level 4 ADV, powered by the ACU, allow you peace of mind when you're not next to your bike
4G / GPS Real-Time Tracking
Keep An Eye On Your Ride
Easily check your bike's location through the Aventon app for peace of mind when your adventures take you off the bike.
Integrated Rear Wheel Lock
Built-in security, lock your hub instantly to prevent bike thefts.
Quickly secure your Level 4 ADV between errands or a mid-ride coffee thanks to the integrated rear wheel lock that immobilizes your rear wheel and further deters theft.
Unusual Activity Detection & Alerts
Stay Up-To-Date
Rest easy knowing you'll receive an immediate alert on your phone if someone tampers with or moves your bike when it's parked or stored.
Apple Watch Connection
Stay Connected On Your Apple Watch!
Control your Level right from your wrist! Introducing Apple Watch Connectivity, integrated control right from your wrist. Power your bike off, engage the E-Lock, and track your rides from your Apple Watch.

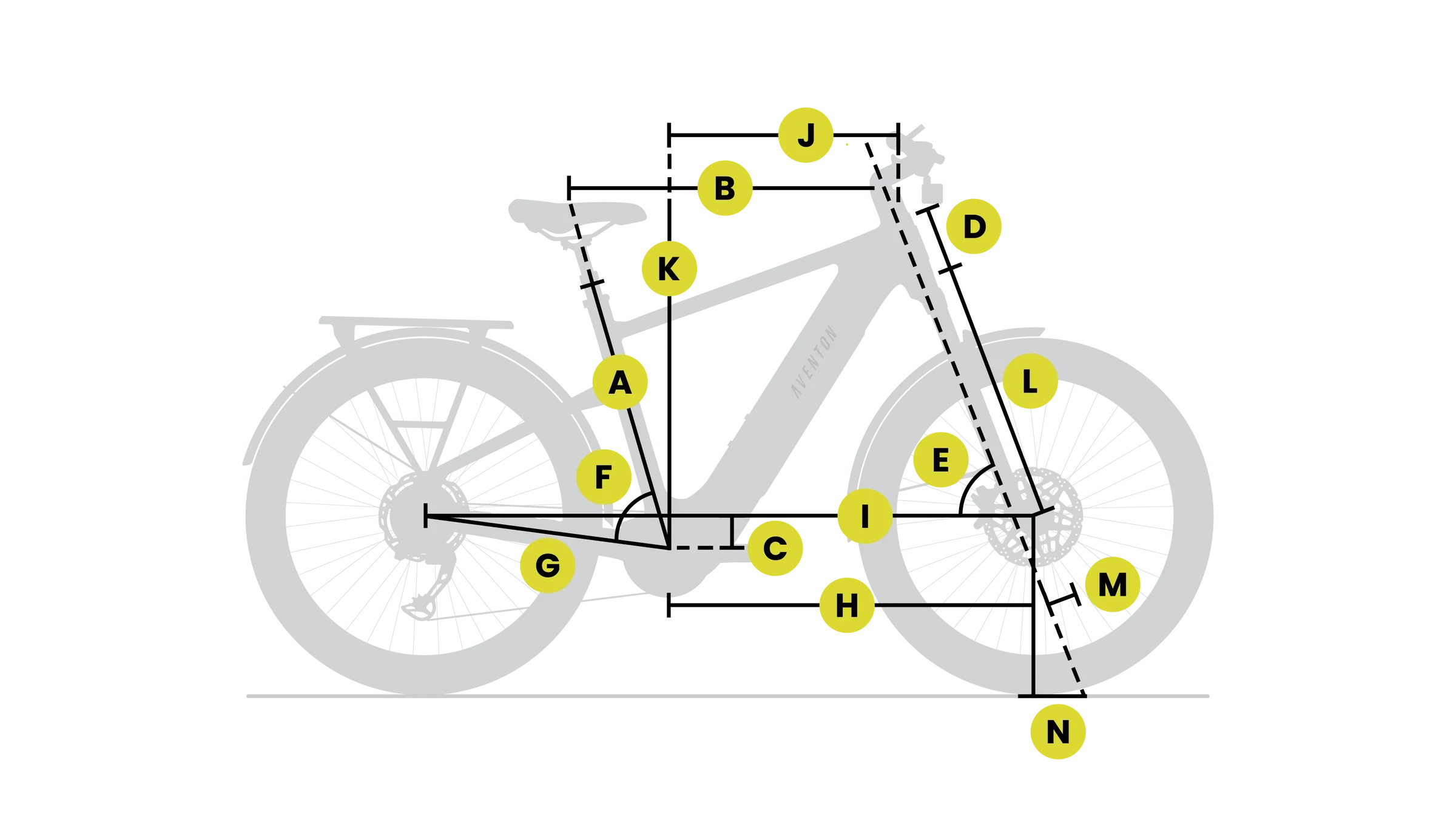

Aventon Level 4 ADV Ebike Size Chart
| Frame Size | Medium | Large | Extra Large |
|---|---|---|---|
| Rider Height (Range) | 162cm - 179cm (5'3" - 5'10") | 180cm - 189cm (5'10" - 6'4") | 190cm - 195cm (6'4" - 6'7") |
| Wheel Size in Inches | 27.5" | 27.5" | 27.5" |
| Stand Over Height | 699mm | 743mm | 766mm |
| A - Seat Tube Length | 425mm | 450mm | 520mm |
| B - Top Tube Length Horizontal | 614mm | 632mm | 649mm |
| C - Bottom Bracket Drop | 65mm | 65mm | 65mm |
| D - Head Tube Length | 120mm | 130mm | 140mm |
| E - Head Tube Angle | 69° | 69° | 69° |
| F - Seat Tube Angle | 74° | 74° | 74° |
| G - Rear Chainstay Length | 480mm | 480mm | 480mm |
| H - Front Wheel Center | 704mm | 722mm | 741mm |
| I - Wheelbase | 1176mm | 1195mm | 1214mm |
| J - Reach | 430mm | 445mm | 460mm |
| K - Stack Height | 642mm | 652mm | 661mm |
| L - Fork Length | 515mm | 515mm | 515mm |
| M - Fork Offset | 46mm | 46mm | 46mm |
| N - Trail | 84.3mm | 84.3mm | 84.3mm |
