Aventon Level.2 Step-Through Commuter Ebike
The Level.2 Step-through is the perfect balance of comfort, efficiency, and ease of use. Preinstalled fenders, a durable rear rack, and a front suspension fork mean that wherever the road takes you, you’ll be protected from the elements, carrying all that you need, without feeling a single bump. Its integrated features, like the battery and front, rear, and fender lights, will take you further than before while ensuring you remain visible to others, while the step-through frame makes hopping on and off effortless. Equipped with a torque sensor, Level.2 Step-through intuitively matches your riding efforts, giving you ultimate control over how fast you commute to work mid-week and how leisurely you ride on weekends.
TORQUE SENSOR
Whether you pedal to your max or at a leisurely pace, our upgraded torque sensor meets you where you're at and amplifies your efforts. Experience a more natural riding style where Level.2 Step-through syncs to you, while also reducing battery use and extending your range!
BACKLIT LCD DISPLAY
Track your battery life, distance traveled, pedal assist level, and more at a quick glance with the Full Color Display. Charge your smartphone via its concealed USB and sync to the Aventon mobile app for access to additional riding data and to share your rides with friends and family!
FRONT SUSPENSION
Take comfort to the next level with a front suspension fork and up to 65mm of travel, absorbing both the toughest parts of the trail and the pavement underneath your wheels.
RACK & FENDERS
Pre-installed fenders will protect you from even the toughest elements while a built-in rear rack transports everything you might need for your joy riding!
HUB MOTOR & BATTERY
Commute with an electric twist! Level.2's powerful 500W hub motor and integrated battery will get you where you need to be in record time, with power still to spare.
PEDAL ASSIST & THROTTLE
Activate one of five levels of pedal assist for days when you want a little extra boost to keep up with the grandkids or rely solely on the throttle to ensure you make it to work on time!
STEP-THROUGH FRAME
Creating a step-through frame opens up the roads to everyone! For those who may have limitations preventing them from hopping on a traditional bike or simply prefer having frame options, Level.2 Step-through makes it easy for everyone to saddle up and get out there!
Specifications
MOTOR 750W (Peak) 500W (Sustained) Brushless Rear Hub Motor
THROTTLE Throttle on demand - Throttle from a complete stop
DISPLAY LCD Smart Easy Read Display with Backlight, Colorful screen with app

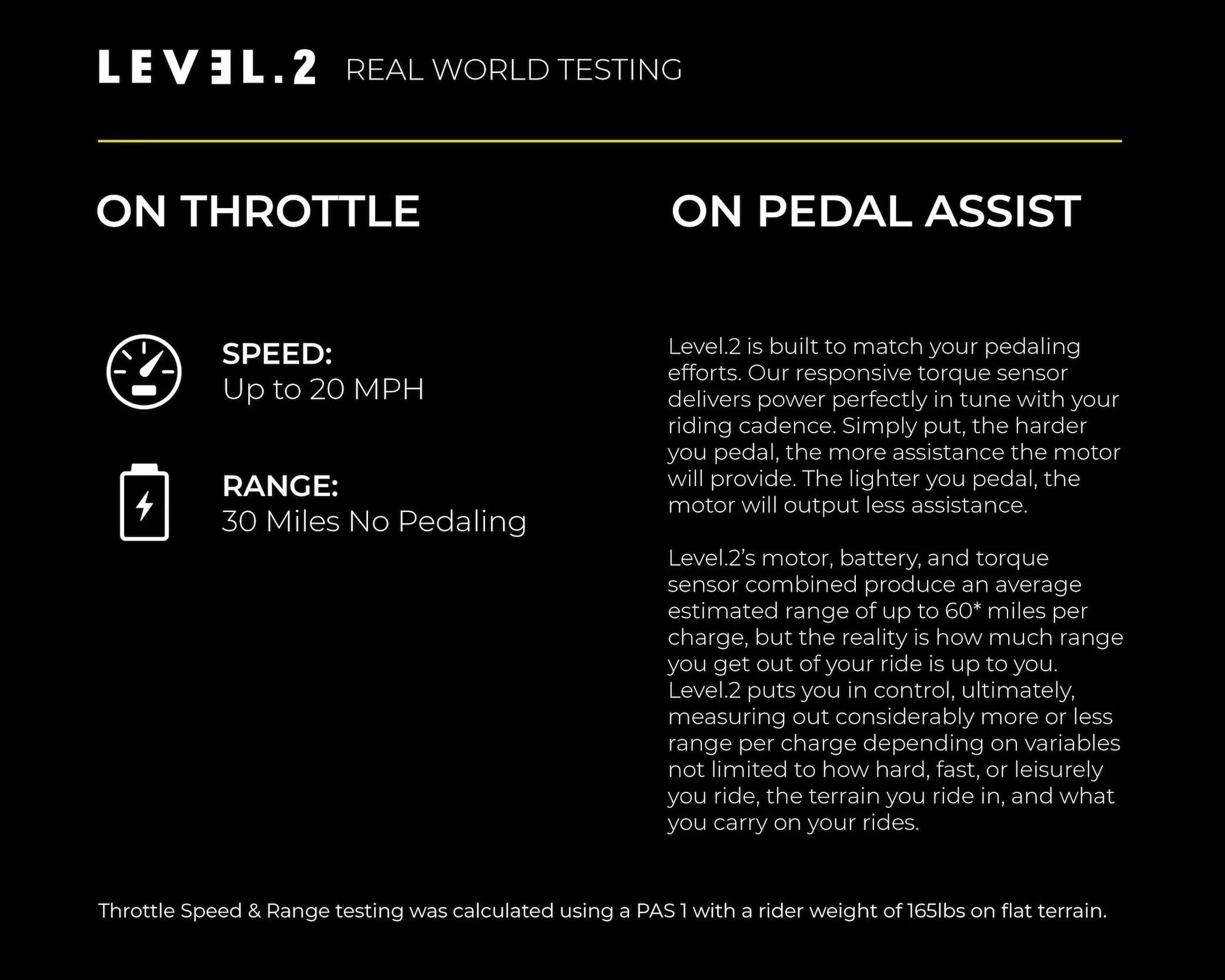

SPEED Up to 28 MPH on Pedal Assist and 20 MPH on Throttle
BATTERY Removable Internal Lithium-ion 48V, 14Ah (672Wh)
SENSORS Torque Sensor
PEDAL ASSIST 5 Levels
CHARGER 48V 3 Amp Fast Charger, 4-5 Hour Charging
RANGE Up To 60 Miles*
FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery
WEIGHT 53lbs
PEDALS 9/16" Alloy Platform
FORK Coil Spring Suspension, Thru-axle, 65mm travel with lockout
WEIGHT LIMIT Maximum Payload Capacity: 300 lbs
KICKSTAND Included, Rear Mount
BOTTOM BRACKET Square Taper, Sealed, Torque Sensor
CRANKSET 170mm w/ 46 T
REAR DERAILLEUR 8 Speed
CASSETTE 12-32T, 8 Speed Cassette
SHIFT LEVER 8 Speed
BRAKES Hydraulic Disc Brakes, 180mm Rotors
CHAIN 122 Link, 8 Speed
RIM Double Wall Aluminum 36h Front & Rear
SPOKES Black Stainless 13G Front / 12G Rear
TUBES Butyl Rubber, Schrader Valve
HUBS 36H Disc Thru-axle Front, Nutted Rear
TIRES 27.5” x 2.1” Hybrid Tires, Reflective Sidewalls
SADDLE Aventon by Velok
SEATPOST Aluminum Alloy, 27.2mm, 2-Bolt Clamp
STEM Threadless, 31.8mm, 7 Degree Rise
SEAT CLAMP 31.8 mm Quick Release
HANDLEBARS Aluminum 31.8mm, 680mm
HEADSET Sealed Bearing Headset
GRIPS Ergonomic Comfort

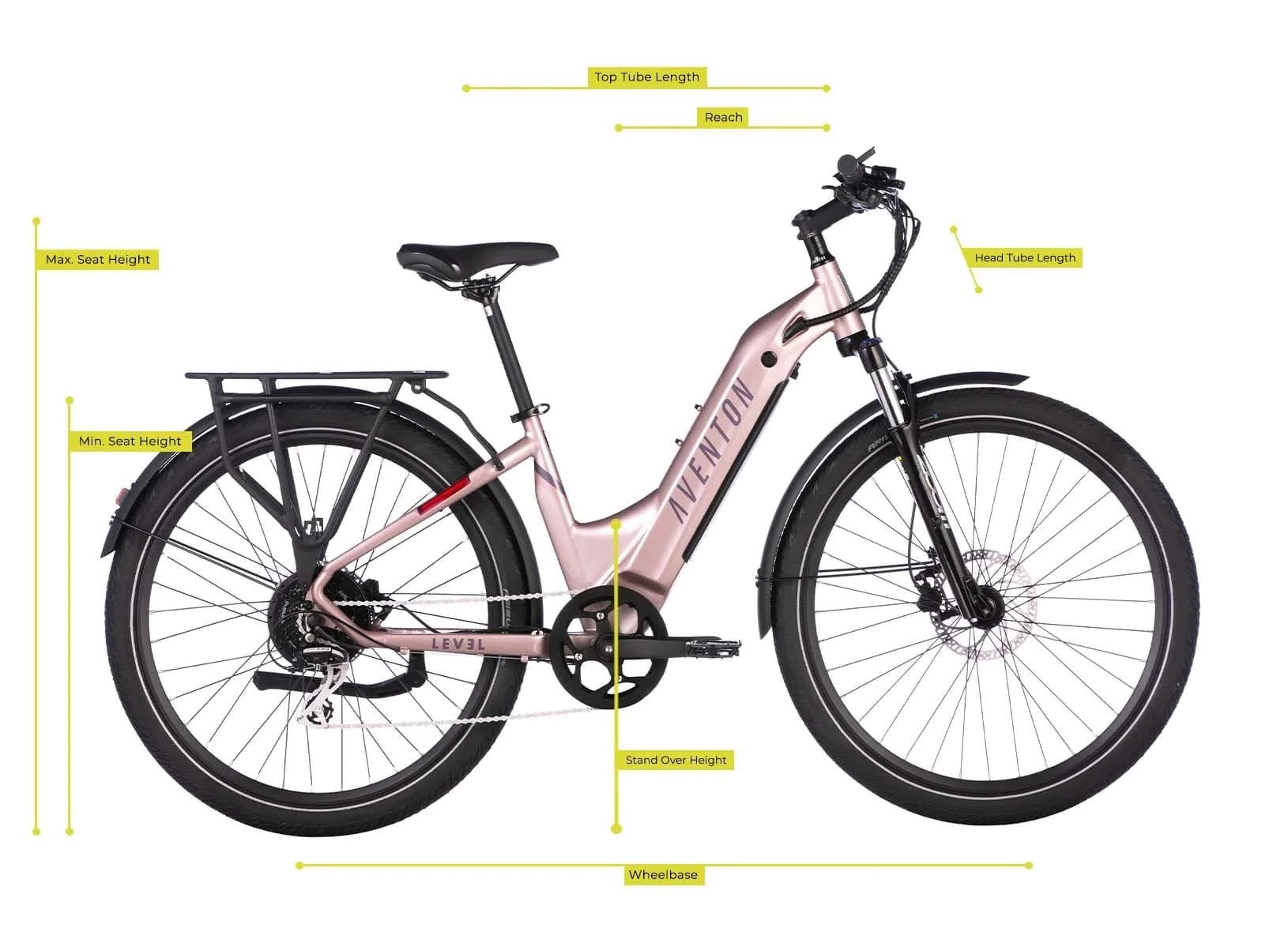

Frame Size S/M M/L
Height 4'11" - 5'7" 5'8" - 6'2"
Top Tube Length 572mm 613mm
Reach 373mm 404mm
Head Tube Length 120mm 130mm
Standover Height 477mm 459mm
Wheelbase 1095mm 1130mm
Min Saddle Height 810mm 875mm
Max Saddle Height 975mm 1065mm
