• GENERAL INFO

    Model: Pace 4 Step Through Ebike

    Weight: 53 lbs

    Total Weight Limit: 300 lbs

    Rider Height: R: 4'11" -5'7" | L: 5'7" - 6'1"

    Water Resistance: IPX5

    Range: Up to 70 Miles

    Ebike Class: Class 2 (Can be converted to Class 3 if local laws and regulations allow)

    Battery Safety Certifications: Certified to UL 2271

    Bike Safety Certifications: UL Safety Certified
UL 2849

    Ideal Use: Cruising

    FRAMESET

    Frame: 6061 Aluminum, Gravity Cast Front Triangle

    Fork: Rigid Aluminum Fork

    Rear Spacing: 142mm

    Fork Spacing: 100mm

    WHEELSET

    Front Wheel: 27.5", 36 hole, Nutted axle, Schrader Valve

    Rear Wheel: 27.5", 36 hole, Nutted hub drive motor, Schrader Valve

    Tires: 27.5" x 2.1"

    EBIKE SYSTEM

    Motor: 36v, 500W

    Motor Torque: 60Nm

    Motor Power: 500W

    Display: Aventon BC147

    Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

    Battery Weight: 8.7lbs

    Controller: 36V, 24A

    Throttle: Aventon LH Handlebar Mounted

    Sensors: Double Sided Bottom Bracket Torque Sensor

    Charger: 36V Output: 42V/ 4A

    Charging time from 0% to 100%: 5 hours

    Lights: Front and rear lights integrated

    BRAKES

    Front Brake: Tektro Hydraulic w/ E-Cutoff

    Rear Brake: Tektro Hydraulic w/ E-Cutoff

    Front Brake Rotor: 180mm 6 bolt

    Rear Brake Rotor: 180mm 6 bolt

    DRIVETRAIN

    Rear Derailleur: Shimano Altus 8-Speed

    Shifter: Shimano 8-Speed Trigger

    Chain: 7/8 speed 122L

    Cassette: 12-32T / 8 Speed Shimano CS HG200-8

    Chainring: 48T

    Chainring BCD: N/A

    Crankset: 3pc, 170mm crank arm

    Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

    Pedals: 9/16" Composite Platform

    COCKPIT

    Saddle: Aventon Saddle

    Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

    Seatpost Clamp: 34.9mm

    Handlebars: BMX Style Aluminum 31.8mm, 720mm

    Stem: 31.8mm x 50mm, +15 Degree Rise

    Grips: Aventon Ergonomic Comfort lock on grips

    Headset: Sealed Bearing Headset

    INCLUDED ACCESSORIES

    Kickstand: Included, rear mount

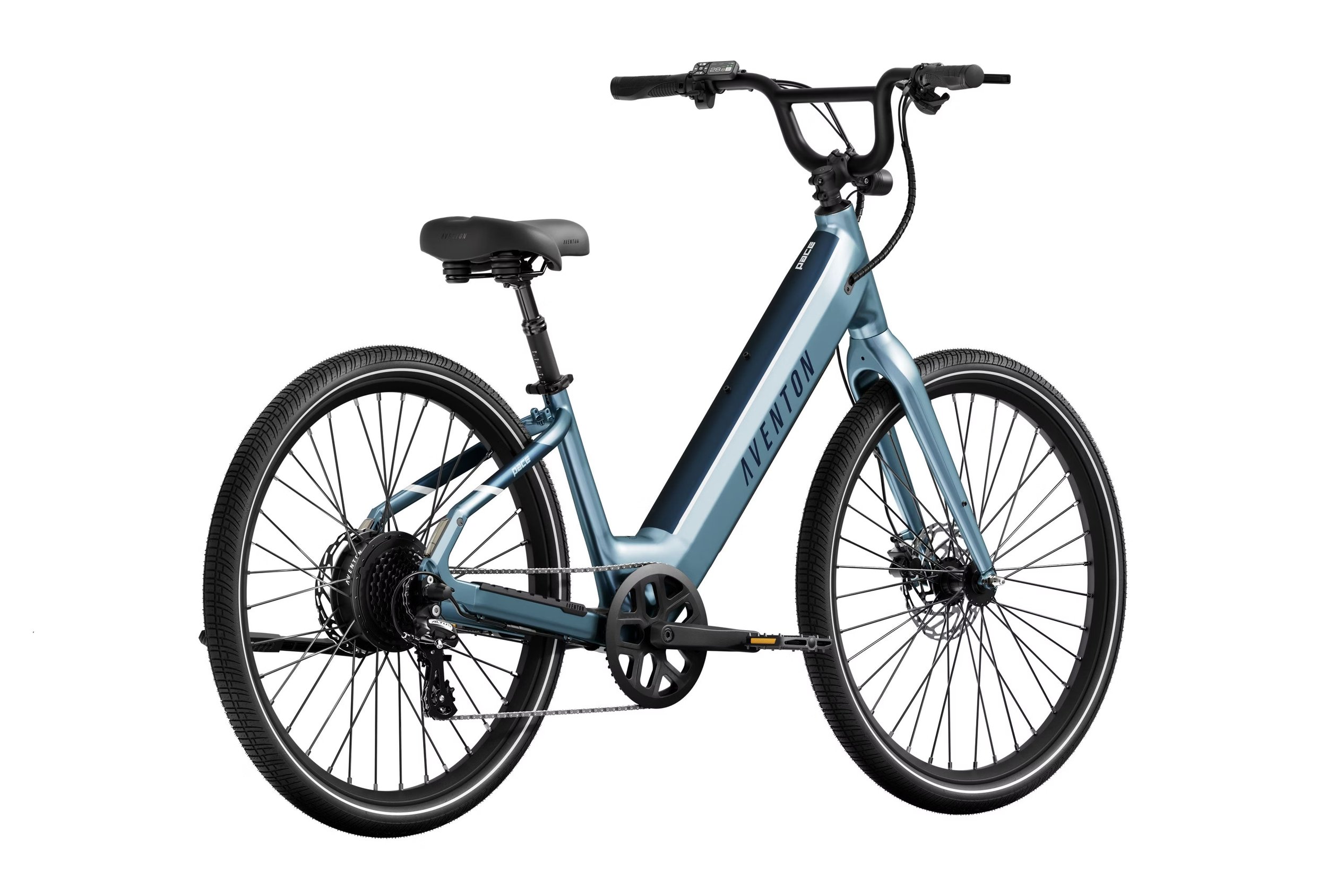

 Pace 4 Step Through Ebike

Casual cruiser with added security features

The Aventon Pace 4 is the next-generation cruiser you've been waiting for. It combines smart bike technology, comfortable frame geometry, and enhanced touchpoints to maximize fun on every ride. Designed for those looking to get around town, go for a ride along the beach, or simply rediscover their local neighborhood on two wheels, the Pace is ready to cruise. Thanks to its 500W of motor power paired with torque sensor technology, Pace 4 is ready to elevate all of your weekend rides, while the 3 customizable levels of pedal assist allow you to fine tune the bikes behavior to match your riding style and preferences. With added security features like GPS† tracking, unusual activity detection, rear wheel lock, and much more, Pace 4 gives you peace of mind knowing your bike is always secure so you can focus solely on the fun ahead. Get ready to cruise, with the all new Pace 4.

Enhanced Security meets Advanced Technology

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock , Geofencing , and Passcode safeguards your Pace 4 and delivers ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time.

Remote Lock and Geofencing

The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

Startup Password and Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

Electronic Rear Wheel Lock

Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

Ride Tune

Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Pace 4.

Over the Air Updates

Stay in the know while on the go. Enjoy optimal performance with intelligent overthe-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

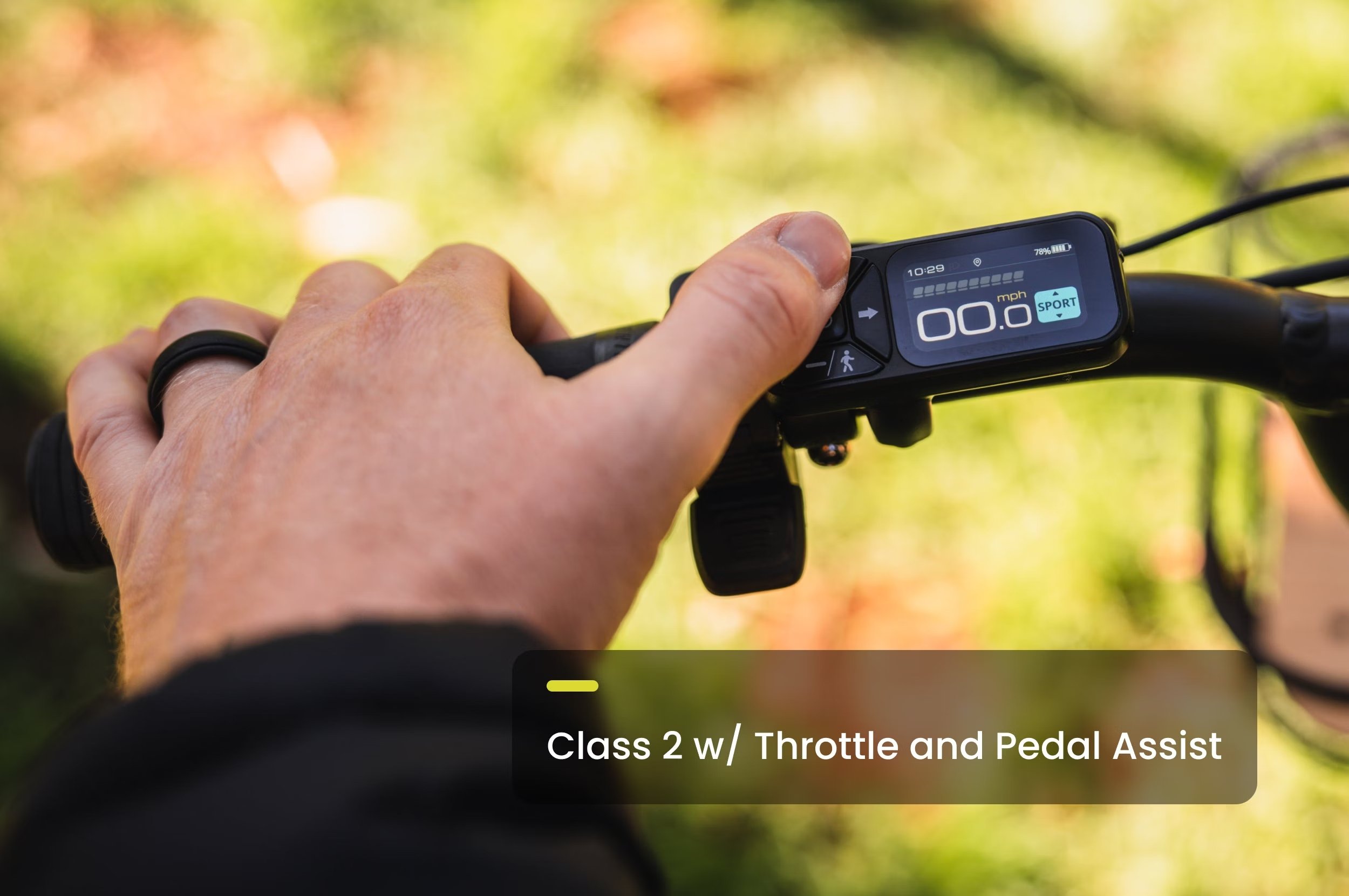

Pedal Assist and Throttle

Three customizable levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!

Pace 4 Step-Through Ebike Size Chart

Pace 4 Step-Through Ebike Size Chart

Measurement Regular Large
Frame SizeRegularLarge
Rider Height (Range)150cm - 170cm (4'11" - 5'7")171cm - 185cm (5'7" - 6'1")
Wheel Size in Inches27.5"27.5"
Stand Over Height430mm (16")430mm (16")
Seat Tube Length (A)400mm (15")480mm (18")
Top Tube Length Horizontal (B)694mm (27")721.8mm (28")
Bottom Bracket Drop (C)70mm (2")70mm (2")
Head Tube Length (D)190mm (7")210mm (8")
Head Tube Angle (E)67°67°
Seat Tube Angle (F)67°67°
Rear Chainstay Length (G)480mm (18")480mm (18")
Front Wheel Center (H)615mm (24")640mm (25")
Wheelbase (I)1085mm (42")1110mm (43")
Reach (J)430mm (16")450mm (17")
Stack Height (K)621mm (24")639.4mm (25")
Fork Length (L)426mm (16")426mm (16")
Fork Offset (M)43mm (1")43mm (1")
Trail (N)86mm (3")90mm (3")
