GENERAL INFO
MODEL: Ramblas eMTB
WEIGHT: 54lbs, size large, w/o pedals
FRAMESET
FORK: RockShox 35 Silver TK 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube
FRAME: 6061 Single-Butted Aluminum Alloy
WHEELSET
HUBS: 15x110 32H Front, 12x148 32H Rear
RIM: Double Wall Aluminum 32h Front & Rear
SPOKES: Black Stainless 13 Gauge
TIRES: S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4"
TUBES: Butyl Rubber, Presta Valve
EBIKE SYSTEM
BATTERY: Aventon 708 WH. 36V LG 21700 cells.
CHARGER: 42V 4A charger
DISPLAY: LCD Smart "Easy Read"
MOTOR: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
BRAKES
REAR BRAKE ROTOR: Sram 180mm 6 bolt
FRONT BRAKE ROTOR: Sram 200mm 6 bolt
BRAKES: Sram DB8 mineral 4 piston hydraulic disc brakes
DRIVETRAIN
REAR DERAILLEUR: Sram NX Eagle 1x12
PEDALS: 9/16" Alloy Platform
CHAINRING: Sram Nx 34t
CASSETTE: Sram SX Eagle 1x12 11-50t
SHIFT LEVER: Sram NX Eagle 1x12 single click
COCKPIT
SEATPOST: 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length
HANDLEBARS: 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
GRIPS: Lock on
STEM: 35mm Ø, 40mm length
SEAT CLAMP: Aventon 34.9mm
INCLUDED ACCESSORIES
KICKSTAND: Included in accessory box
FRONT HEAD LIGHT: Included in accessory box
Aventon Ramblas eMTB ebike
eMTB that’s trail tested and road ready
Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.
Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.

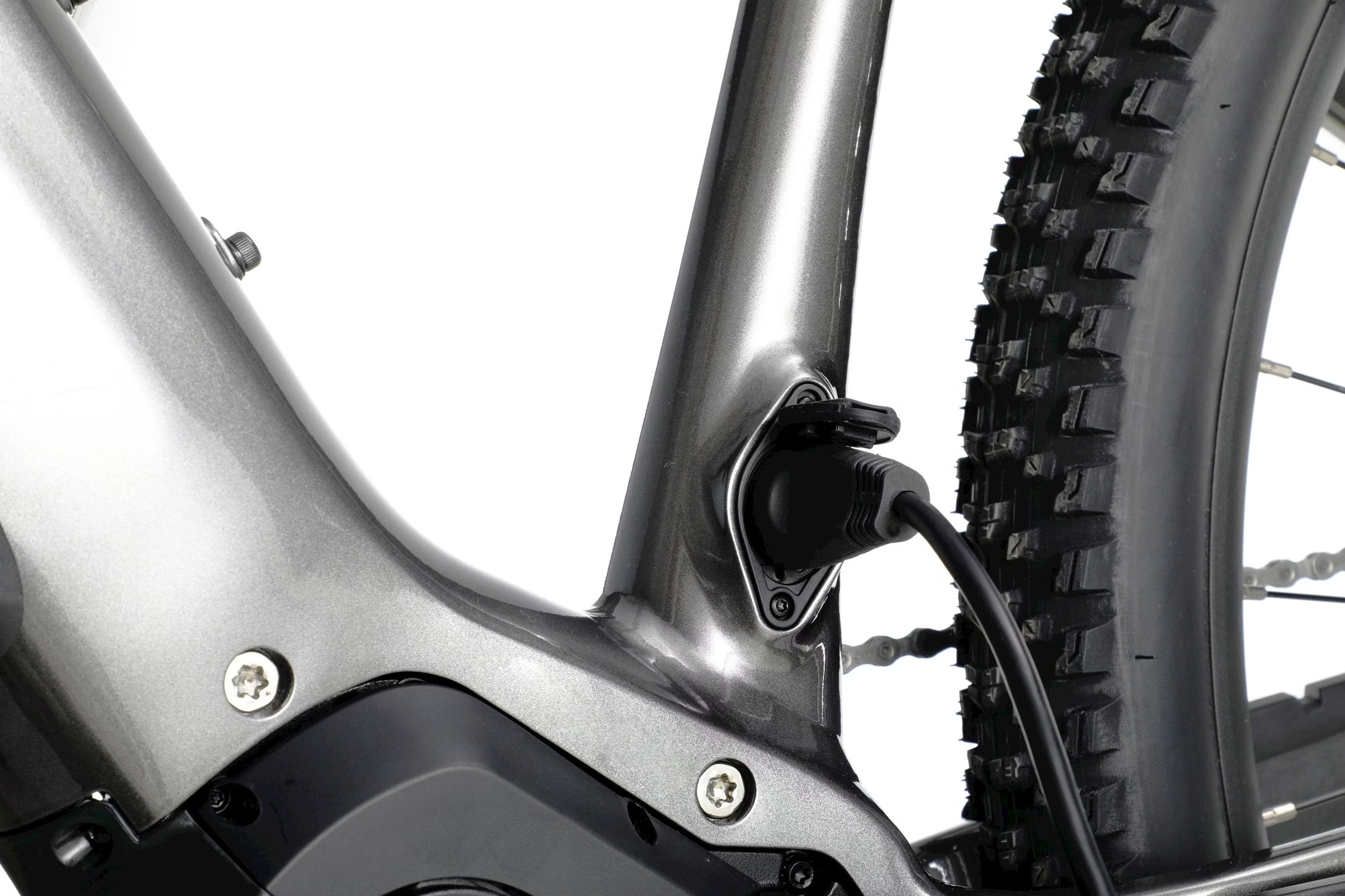

Mid-Drive Motor & Battery
Aventon’s mid-drive motor was designed to give riders full control over their riding experience. With its 250 watts of sustained power, 750 watts at peak power, 36V battery, and adjustable three pedal assist levels, you can customize your ride to your liking for trail and daily commutes.
100 nm of Torque
Ramblas’ A100 motor produces a smoother, more natural feel when accelerating and decelerating. Its 100 nm of torque helps you quickly reach peak power when needed, then gradually tapers off to a more consistent output.
Ride Tune
Ramblas' Ride Tune enables motor customization via the Aventon app for a more personalized riding experience. Fine-tune Assistance, Max Torque, and Pedal Response, so you can optimize the full potential of your Ramblas.
Over-The-Air Updates
Upgrade Ramblas for optimal performance with its intelligent over-the-air updates that give you instant software updates through the Aventon app without having to plug in or go to a shop.

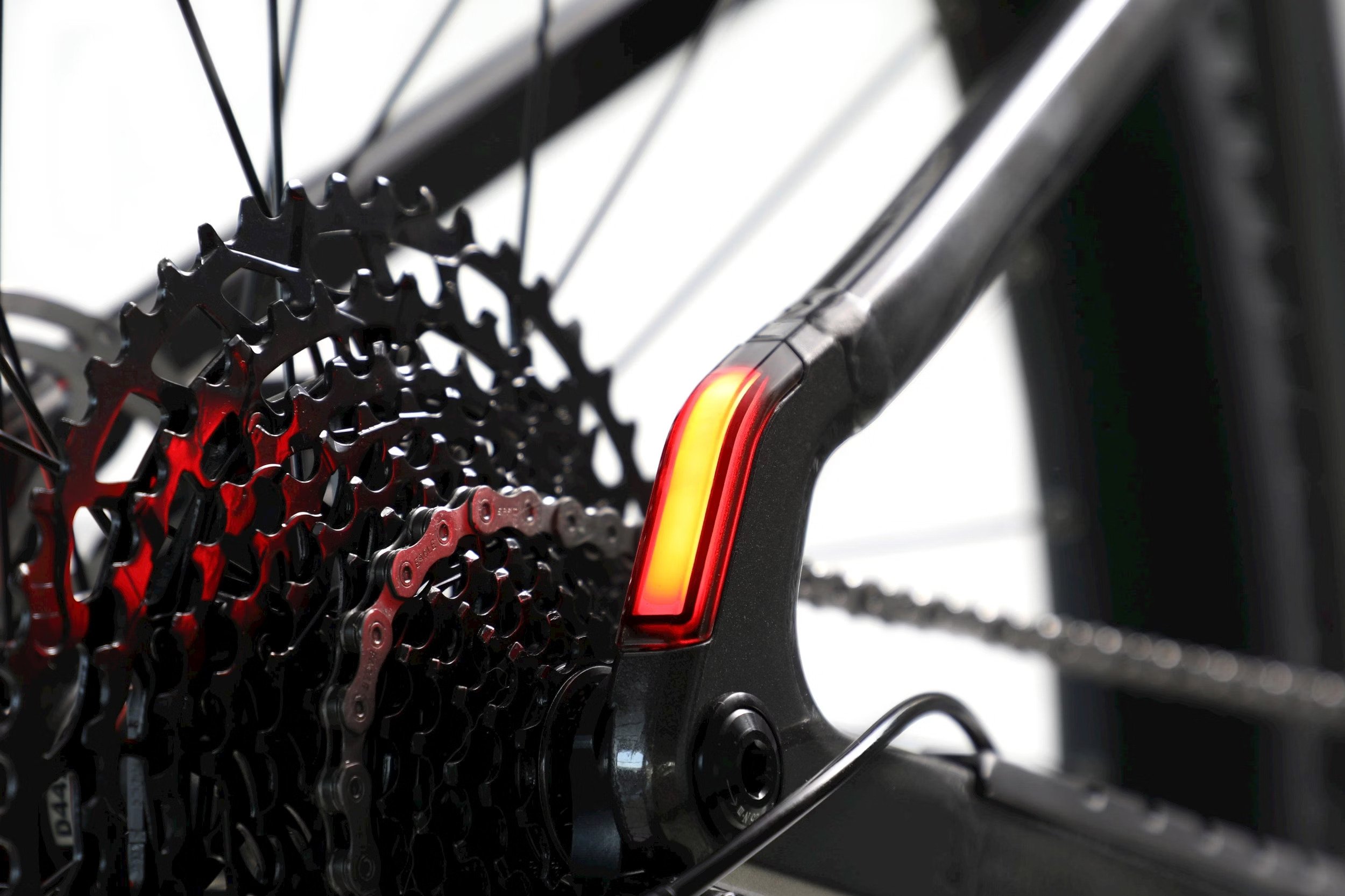

Drivetrain
Ramblas comes equipped with a Sram NX 12-speed drivetrain for more efficiency to climb hills, roll around on trails, and ride faster on flat surfaces.
Dropper Post
Ramblas’ dropper post enhances control and comfort right from the handlebars using the dropper lever. Drop it low for more room in the cockpit while navigating steep or technical terrain, or raise it up for a more efficient riding position.
Ramblas Display
Same great features as Aventon’s Full Color Display, only more compact. The Ramblas Display is slightly smaller and repositioned to protect it from unforeseen circumstances while hitting the trail or streets.
Hardtail Frame
Ramblas’ hardtail frame is a workhorse for the all-terrain. It's lightweight, durable, and reliable, giving you the confidence you need on mountain trails and rough roads.
Front Headlight
Attach Ramblas’ optional front headlight for better visibility in low-lighting conditions. Simply clamp it to your handlebars, plug it in and shine on.
Pedal Assist
Switch between 3 levels of pedal assist: eco, trail, and turbo, to get more in the mountains and on the streets. Add a boost to the way you move with a top speed of 20 mph and up to 80 miles in range.
Brakes
Enhance your speed control on steep slopes and loose terrain with Ramblas’ Sram DB8 mineral 4 piston hydraulic disc brakes. With four pistons, Ramblas’ brakes offer superior modulation, meaning more brake fluid is distributed across a larger surface area, allowing you to stop when you need to most.
Fork
Ramblas’ Rockshox 35 suspension with 130mm of travel allows riders to find comfort on the roughest of terrain. Roll over rocks, tree roots, and rugged roads and let the suspension take care of the rest.
Bike Frame Size Chart
Parameter | Small | Medium | Large | Extra Large | Frame Size | Small | Medium | Large | Extra Large |
---|---|---|---|---|
Rider Height (Range) | 5'1" - 5'5" | 5'5" - 5'9" | 5'10" - 6'2" | 6'2" - 6'5" |
Wheel Size | 27.5" | 29" | 29" | 29" |
Seat Tube Length | 380mm | 410mm | 450mm | 490mm |
Top Tube Length Horizontal | 594.5mm | 616.5mm | 642mm | 668mm |
Bottom Bracket Drop | 55mm | 55mm | 55mm | 55mm |
Head Tube Length | 125mm | 125mm | 135mm | 135mm |
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
Rear Chainstay Length | 465mm | 465mm | 465mm | 465mm |
Front Wheel Center | 720mm | 744mm | 770.5mm | 796mm |
Wheelbase | 1179.5mm | 1203mm | 1230mm | 1256mm |
Reach | 415mm | 432.5mm | 455mm | 481mm |
Stack Height | 640mm | 656.5mm | 665mm | 665mm |
Fork Length | 530mm | 547mm | 547mm | 547mm |
Fork Offset | 44mm | 44mm | 44mm | 44mm |
Trail | 108.6mm | 117mm | 117mm | 117mm |
Standover | 683mm | 702mm | 712mm | 719.5mm |
Rider Height (Range) | 5'1" - 5'5" | 5'5" - 5'9" | 5'10" - 6'2" | 6'2" - 6'5" |
Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
