GENERAL INFO
Model: Sinch 2.5 Ebike
Weight: 68 lbs
Total Weight Limit: 300 lbs
Rider Height: 4'11" - 6'2"
Box Size: 43 x 24 x 33
Ebike Class: Class 2 Ebike
Water Resistance: IPX4
Safety Certifications: UL and TUV Safety Certified UL 2849 / UL 2271
Battery Safety Certifications: Certified to UL 2271
Range: Up to 55 Miles
Pedal Assist: 4 Levels
Ideal Use: All-Terrain
FRAMESET
Frame: 6061 Single-Butted Folding Aluminum Alloy with Internal Battery
Fork: Aventon coil fork with lock out and black stanchions.
Rear Spacing: 177mm
Fork Spacing: 135mm
Frame Style: Step-Through
WHEELSET
Front Wheel: 20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve.
Rear Wheel: 20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.
Tires: Innova IA-2579 20x4.0
EBIKE SYSTEM
Speed: Class 2
Motor: Motor: 48v, 500w sustained, 1056w peak brushless hub motor
Motor Torque: 60Nm
Display: Aventon BC147
Battery: Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)
Battery Weight: 7.6 lbs
Controller: 48v 22A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 48V, 3 Amp Fast Charger
Charging time from 0% to 100%: 4-5 Hours
Lights: Front and rear lights integrated
BRAKES
Front Brake Rotor: 180mm 6 bolt
Rear Brake Rotor: 180mm 6 bolt
Front Brake: Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
Rear Brake: Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
DRIVETRAIN
Rear Derailleur: Shimano Altus RD-M310 8 Speed
Chain: 114 Link, 8 Speed
Cassette: 12-32T / 8 Speed Shimano CS HG200-8
Chainring BCD: 130
Crankset: 3pc, 170mm crank arm
Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm
Pedals: 9/16" Composite folding pedals
Chainring: 48T
COCKPIT
Seatpost: Aventon Suspension Seatpost, 30.9, 350mm Length
Seat Clamp: 34.9mm Quick Release
Handlebars: Aluminum 25.4mm diameter, 580mm wide
Grips: Aventon glue on grips
Headset: Sealed Bearing Headset ZS44/28.6| ZS55/40
Saddle: Aventon Saddle
INCLUDED ACCESSORIES
Kickstand: Included, rear mount
Rear Rack: Included
Rear Rack Weight Limit: 55 lbs
Fenders: Included
Sinch 2.5 Ebike
Foldable and Compact for Instant Fun
Sinch 2.5 is the perfect companion for your next adventure! Easily foldable to maximize storage space, the Sinch 2.5 is the perfect choice for a transportable, adjustable e-bike to amplify every ride. Now with upgraded hydraulic disc brakes, suspension seatpost, and a sleek new side display, the Sinch 2.5 is more comfortable and capable than ever before.

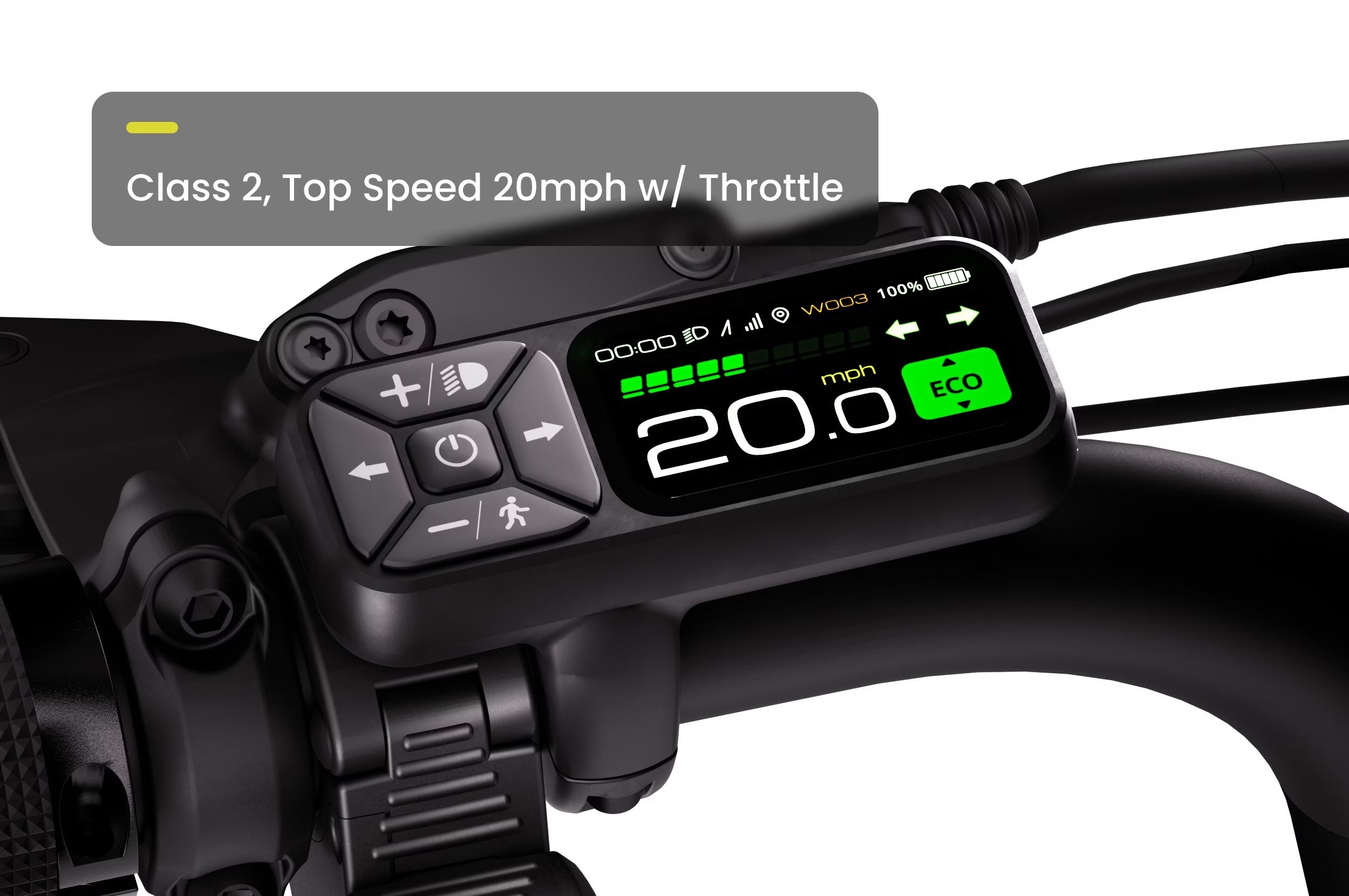

New Side Display with Intuitive Controls
Inspired by the simplicity and function of iconic MP3 players, the controls on the sleek new side display gives you an easy access to everything you need. Rest assured, it now has a USB-C port to conveniently charge your phone while you ride.
Torque Sensor
The Sinch 2.5's torque sensor measures the amount of force being applied to the pedals, then provides assistance based on your efforts, creating a more natural riding experience.
Integrated Lights w/ Turn Signal Functionality
Sinch 2.5's front headlight allows you to see and be seen on the road, while the integrated rear lights double as turn signals that communicate to motorists or other cyclists when you're changing lanes for your safety.
Hub Motor & Battery
A 750W rear-hub (peak) motor coupled with a fast charging, fully integrated 48V battery with LG cells means there's plenty of power to hit the streets or go off-roading.
Fat Tires
4” fat tires will take you off the beaten path and add more adventure to your next ride.
Fenders & Rear Rack
Bring whatever you need wherever you go with the rear rack, and let the fenders protect you from water spray or mud as you make your way.
Front Suspension
Sinch 2.5's front suspension with up to 45mm of travel means there's more ground to cover on the road or off-the-beaten-path.
Suspension Seatpost
No shocks. No vibrations. Just smooth riding. The sleek, padded suspension seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.
Hydraulic Disc Brakes
Hydraulic disc brakes offer superior stopping power, with improved modulation. This ensures you are able come to a complete stop faster and easier, making for an overall safer ride.
Sinch 2.5 Ebike Size Chart
| Measurement | One Size |
|---|---|
| Frame Size | One Size |
| Rider Height | 4'11" - 6'3" |
| Wheel Size | 20" x 4.0" |
| Stand Over Height | 390mm (15") |
| Seat Tube Length (A) | 400mm (15") |
| Top Tube Length Horizontal (B) | 675mm (26") |
| Bottom Bracket Drop (C) | 0mm (0") |
| Head Tube Length (D) | 165mm (6") |
| Head Tube Angle (E) | 72° |
| Seat Tube Angle (F) | 71° |
| Rear Chainstay Length (G) | 420mm (16") |
| Front Wheel Center (H) | 717mm (28") |
| Wheelbase (I) | 1137mm (44") |
| Reach (J) | 491mm (19") |
| Stack Height (K) | 534mm (21") |
| Fork Length (L) | 410mm (16") |
| Fork Offset (M) | 50mm (2") |
| Trail (N) | 44mm (1") |
