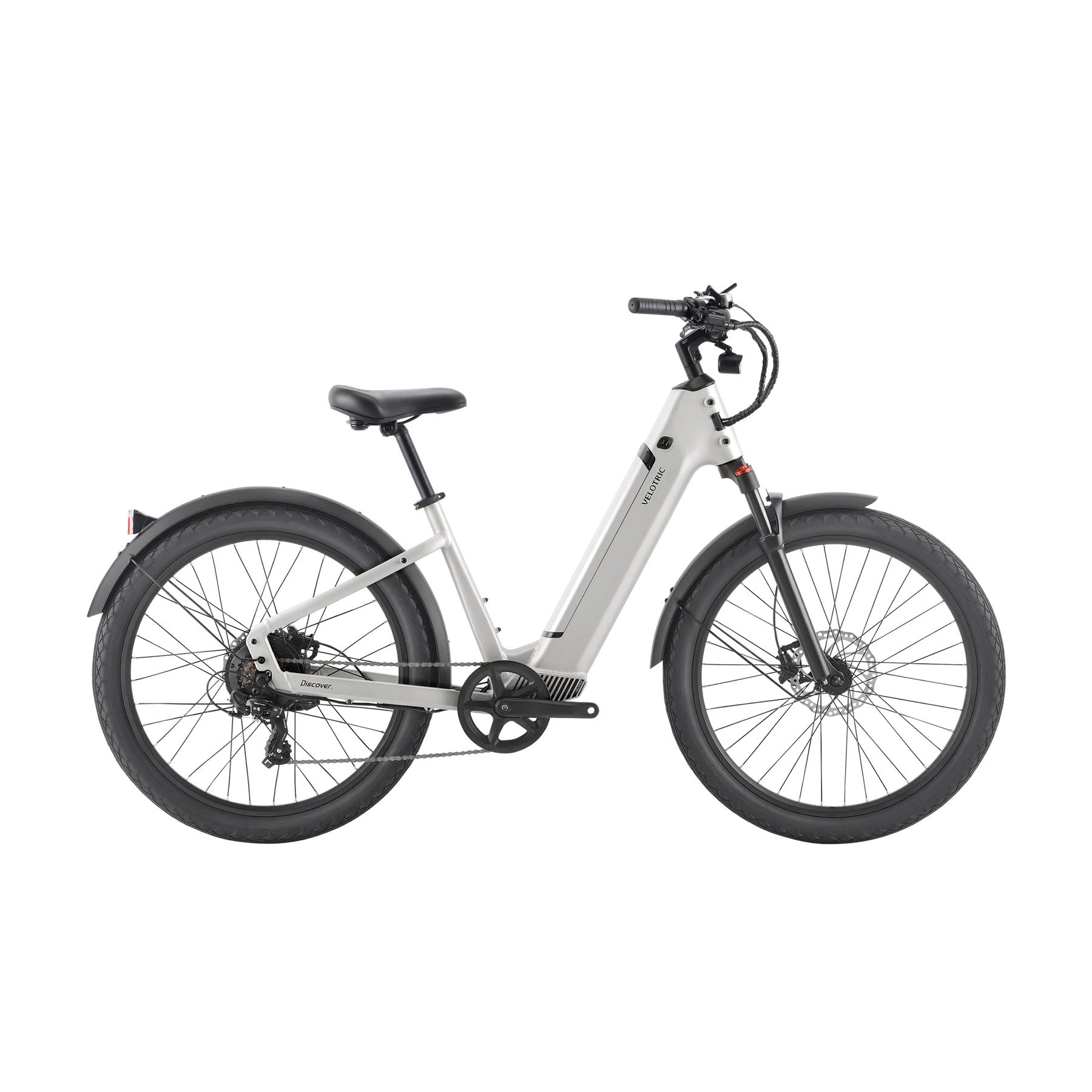

Velotric Discover 1 E-Bike

Meet Discover 1. Premium quality commuter e-bike that's affordable for everyone.

Fly on wheels. Fast and smooth.

500W high-performance motor (peak 900W) and a 65Nm torque for a smooth, exciting and effortless riding experience even at 8 degrees uphill.

Have more fun with 50% longer range.

Equipped with 21700 48V 14.4Ah removable battery made by Samsung, the Velotric Discover 1 features a 50% longer range compared to similar bikes in the market. Up to 65 miles on a single charge. You only need to charge once per week.

Easy to hop on & off. Accessible to all riders.

Reinforced aluminum step-thru frame so you can easily hop on & off, even with items stored on the rear rack.

Ride with the peace of mind.

Safety is our most important design philosophy. Not only we certified booth our battery and bike with UL®, one of the highest and safest standards in the bike industry. We rigorously tested our bike frames over 150,000 times under the toughest" conditions so that you never have to worry about our quality.

The Discover 1 is equipped with a rear light with braking high-beam function, IPX6 grade waterproof, and double Hydraulic-Disc Brakes offering riders extra safety in any conditions.

The most versatile commuter ever.

The Discover 1 can easily adapt to multiple road conditions from road cycling to gravel roads allowing you to perform different kinds of activities.

The front fork gives you a smooth riding experience in parks, cities, suburbs, or no matter where you ride. It is even equipped with a walk mode to assist you to walk up a hill.

  • FRAMESET

    Fork: Hydraulic suspension with 80mm travel, with Lock-out

    Frame: Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front, and rear fenders

    ELECTRONICS

    Motor Hub: 48V, 500W, max torque 65Nm

    Battery: 48V, 691Wh, UL 2271 Recognized

    Cell: 21700, made by Samsung

    Charger: 48V, 3A, operates on 100V-240V AC, 5-6 hours charging

    Display: 3.5’’ Backlit LCD display with speed, trip, battery, assist Level and more

    USB Port: 5V 500mA, output for external devices

    Throttle Assist: Thumb-control, removable

    Headlight: High output integrated LED, adjustable angle

    Tail Light: Integrated with rear fender

    SPEED & RANGE

    Pedal Assist Range: 65miles

    Throttle Range: 58miles

    DRIVETRAIN

    Chainrings: 42T

    Crankset: Aluminum alloy, 170mm

    Cassette: 7-speed, 14-28T

    Chain: KMC-Z7

    Rear Derailleur: Shimano RD-TY300, 7-speed

    Shift Lever: Shimano SL-TZ50, 7-speed, thumb shifter

    BRAKE

    Brake: Hydraulic disc brakes

    Rotors: 180mm front and rear

    Brake Levers: Aluminum Alloy, with adjustable reach and power cutoff switch

    WHEEL

    Rims: Double-wall aluminum alloy, 36H

    Tire: 26 x 2.5’’, puncture-resistant liner

    COCKPIT

    Handlebars: Aluminum alloy, 31.8mm, 660mm wide on Step-thru, 680mm wide on High-step

    Grips: Durable ergonomic grips

    Stem: Aluminum alloy, velotric customized, 10-degree rise

    Saddle: Velotric urban comfort ergonomic seat, 220mm wide

    Seat Post: Aluminum alloy, 350mm x 30.4mm, quick release clamp

    SUPPORTS

    Fenders: Front and rear full coverage

    Pedals: 9/16’’ Alloy platform with reflectors

    Kickstand: Heavy-duty aluminum with wide foot

    WEIGHT& LOAD

    Bike Weight: High-step 65lbs

    Step-thru: 63.5lbs

    Front rack Load Capacity: 33 lbs

    Rear rack Load Capacity: 55 lbs

    Max Bike Load: 440 lbs

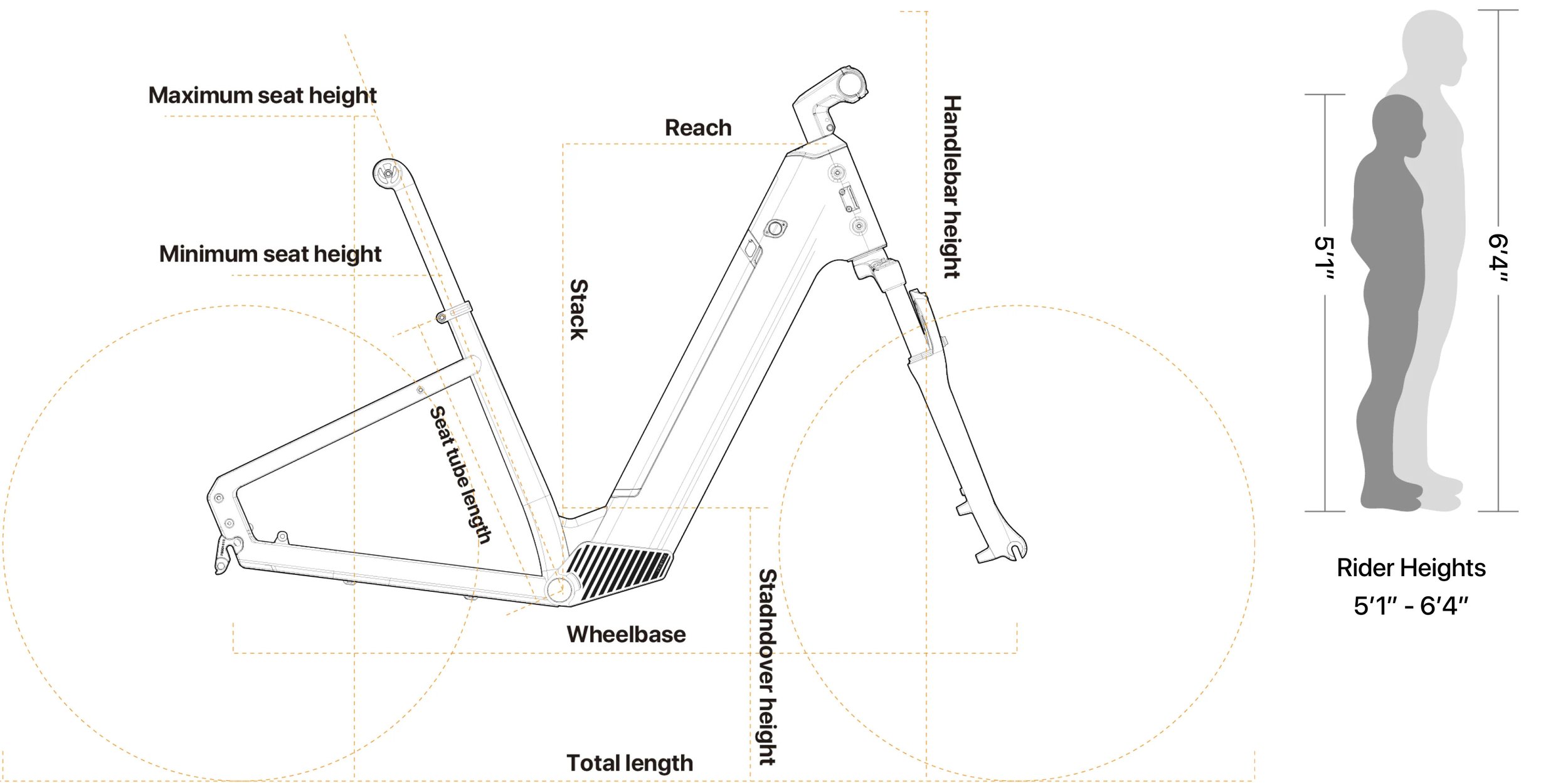

  • Head Tube Angle: 68°

    Seat Tube Angle: 70°

    Reach / Stack: 386/630mm

    Rider Heights: 5'1''-6'4''

    Rear Center: 480mm

    Minimum seat height: 788mm

    Maximum seat height: 989mm

    Handlebar height: 1020mm

    Total length: 1822mm

    Seat tube length: 435mm

    Standover height: 390mm

    Wheelbase: 1140mm
