Size Guide
Bike Size: Regular/Large
User Height Range: Regular: 4'11" ~ 5'9"/Large: 5'6" ~ 6'4"
Frameset
Frame: Triple-Butted Aluminum Alloy
Fork: Hydraulic suspension 80mm travel with Lock-out, 15x110mm thru-axle
Electronics
Motor: 48V, 750W (1100W Peak), 75Nm
Battery: 48V, 705.6Wh, IPX7, Certificated by UL 2271
Cell: Samsung/LG 21700 cell, Certificated by UL 2580
Charger: 48V, 3A Fast Charger
Sensor: Torque sensor
Display: 3.5" Full color, high brightness, Bluetooth, adjustable angle
USB Port: USB Type-C phone charge
Security: Apple Find My™
Throttle: Trigger-control, removable
Pedal Assist: 3 Modes × 5 Levels
Walk Mode: 2.9 MPH
Front Light: Light sensing 130Lux high-output integrated LED, adjustable angle
Rear Light: Brake highlight, turn signal, rear light steady/flash, integrated with rear rack
Water Resistant: IPX6
Speed & Range
Max Speed (Default): 20 MPH
Max Speed Adjustable Range: 12~28 MPH
Class: 1/2/3
Throttle Range: 60 Miles
Pedal Assist Range: 75 Miles
Drivetrain
Chainrings: 46T, narrow wide chainring
Crankset: Aluminum Alloy, 170mm
Cassette: 8-speed
Rear Derailleur: SHIMANO 8-speed
Shift Lever: SHIMANO 8-speed
Chain: KMC 8-speed
Brake
Brake: Tektro Hydraulic Disc Brake
Rotors: 180mm front and rear
Brake Levers: Aluminum Alloy, with power cutoff
Wheel
Rims: Double-wall Aluminum Alloy
Front Hub: NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire: Kenda 27.5x2.4" eBike puncture resistant tires
Cockpit
Handlebar: Aluminum Alloy, Φ31.8mm, 680mm (R)/700mm (L)
Grips: Durable ergonomic grips, lockable
Stem: Adjustable, Aluminum Alloy, φ31.8mm, 90mm
Saddle: VELOTRIC urban comfort ergonomic seat
Seatpost: Aluminum Alloy, φ30.9mm, 350mm
Clamp: Aluminum Alloy, quick release
Supports
Fenders: Aluminum Alloy, front and rear full coverage
Rear Rack: Aluminum Alloy, MIK HD system
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
Bike Weight: 63lbs
Rear Rack Load Capacity: 66lbs
Max Bike Load Capacity: 440lbs
Certification
UL Certification: UL 2849
ISO Standard: ISO 4210

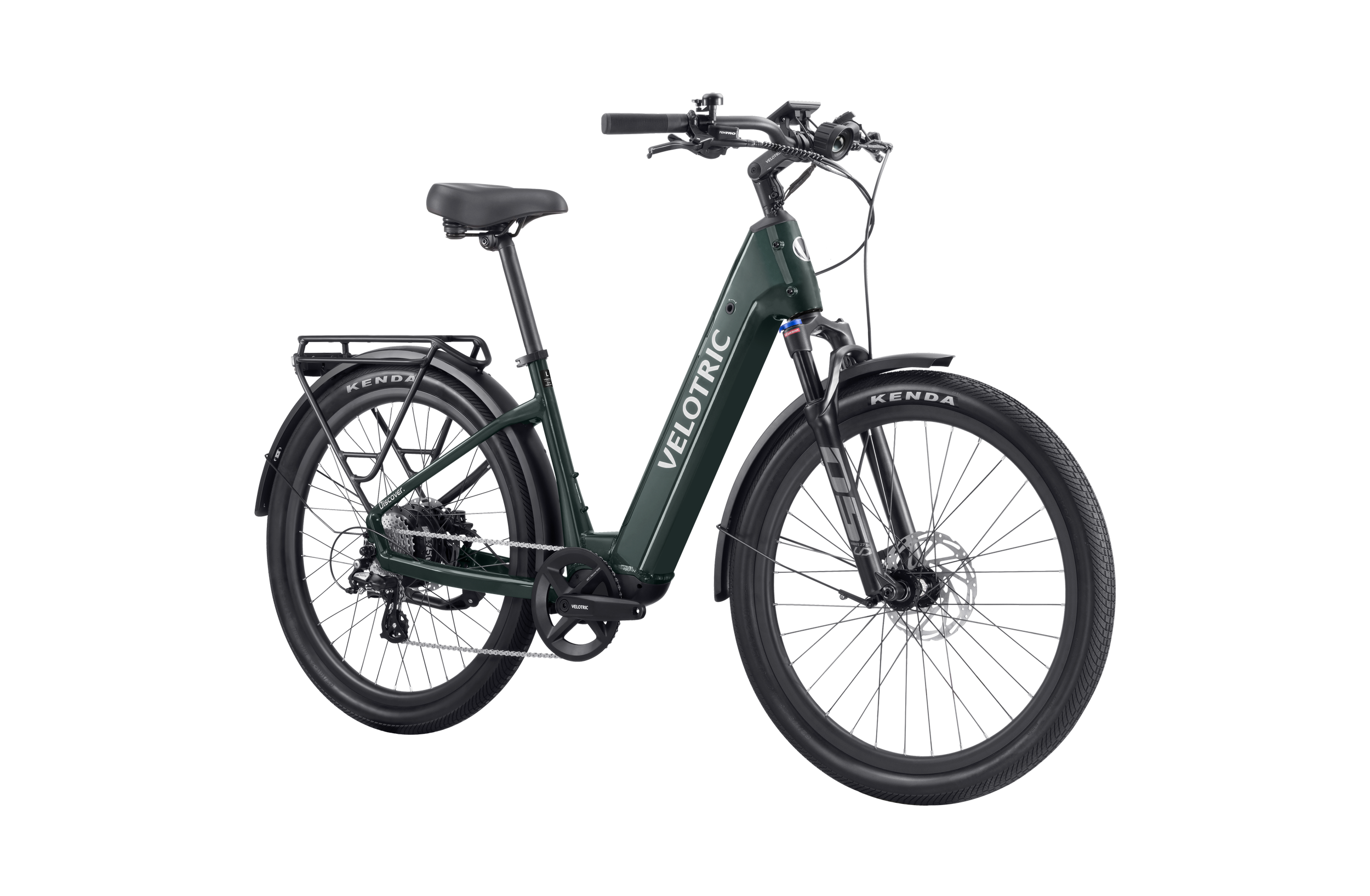

Velotric Discover 2 E-Bike
Discover 2: A Premium Package
Our most comfortable e-bike, now with even more power. A premium, all-purpose ride so that you enjoy every journey with peace of mind.
COMFORTABLE & POWERFUL
Enjoy effortlessly going up hills with the 750 W motor and enjoy an incredibly comfortable riding experience via:
A torque sensor which delivers a smooth riding experience, with up to 15 power curves that go from 12-28 mph.
80 mm hydraulic suspension, 2.4” wide tires and ergonomic foam saddle to pad out the bumps and reduce fatigue.
Ergonomic frame design with a low 15” (390mm) standover height, adjustable stem that can fit riders from 4’11” - 6’4”
YOUR SAFETY IS OUR PRIORITY
At Velotric, our goal is to deliver exceptional value through our high-quality e-bikes. The Discover 2 is
IPX6 waterproof for the bike, with additional
IPX7 waterproof rating for the battery.
Equipped with Apple Find My. The integrated smart feature will ensure you can always find your bike, or even track it down if stolen. The visible Apple Find My badge also acts as an effective deterrent to potential theft.
Equipped with 180mm hydraulic disc brakes delivering a superior braking experience. The Discover 2 also has a brake cut-off function, where squeezing the brake levers temporarily cuts the motor to ensure additional stopping power, even on a rainy day.
UL2271 and UL2849 certified, which tests e-bikes against the industry-leading safety standards.
Durable and strong, having been subject to harsher tests than the standard ISO requirement.
EASY TO USE
The Discover 2 is equipped with several features so that you’re riding rather than fussing or fiddling. Enjoy its:
3.5” TFT color display that will show you riding info and allow you to change settings easily, even under the sun.
Easy e-bike class change (Class 1, 2, 3), so that you can use your bike in any scenario.
Cruise control which allows you to focus on your surroundings with a leisurely, effortless ride. Simply ride at a set speed without pedaling or using the throttle!
Seamless integration with the Velotric app which unlocks even more new features!
Compatibility with a range of accessories. Featuring a MIK HD rack, you can adapt it for any scenario.
High Performance Motor
The 750W high-power motor (peak 1100W) brings strong hill-climbing capabilities, with 75Nm of torque, surpassing most models on the market in terms of climbing steeper hills and faster acceleration.
UL2271 Certified Battery
The Discover 2 battery, boasting high-quality cells and UL2271 certification, delivers exceptional performance with its IPX7 waterproof rating. Designed for the long haul, it promises an impressive range of up to 75 miles. Quality power for every ride.
3.5" Color Display
See detailed riding info or adjust the settings of the Discover 2 with this new color display. High brightness and a polarizing protective film ensures visibility even under sunlight and with polarized sunglasses. Bonus: Adjust the tilt of the screen so y een so you can see it, ou can see it, however you ride! ou ride!
TEKTRO Hydraulic Disc Brakes
180 mm disc rotors provide a very responsive and reliable braking experience. The Discover 2 also has a cut-off function, where squeezing the brake levers temporarily cuts the motor to ensure additional stopping power, even on rainy days.
80mm Hydraulic Suspension with Lockout
Hydraulic suspension provides a superior dampening effect compared to spring suspension. With 80 mm of travel and lockout, the Discover 2 can comfortably carry you through the bumpy terrains and reduce fatigue via vibrations.
Integrated Taillights with Turn Signals
Integrated with the rear rack for maximum visibility, Discover 2 is equipped with a rear light that has brake and turn signal functions to enhance your safety.
Adjustable Handlebar Stem
Find your perf our perfect riding postur ect riding posture for comf or comfort or speed with the handlebar stem that can adjust up to 60 degrees.
USB Type-C Port
Does your phone need an extra charge? Simply connect it to the USB Type-C port at the bottom of the remote and to give it the extra juice!
Bicycle Size Chart
| Dimension | Regular | Large |
|---|---|---|
| Height | 4'11" ~ 5'9" | 5'6" ~ 6'4" |
| Seat Tube Length | 380mm | 460mm |
| Head Tube Length | 156mm | 156mm |
| Stack | 647mm | 647mm |
| Reach | 373mm | 373mm |
| Stand-Over Height | 390mm | 390mm |
| Top-Tube Length (horizontal) | 590mm | 609mm |
| Min Saddle Height | 745mm | 810mm |
| Max Saddle Height | 946mm | 1015mm |
