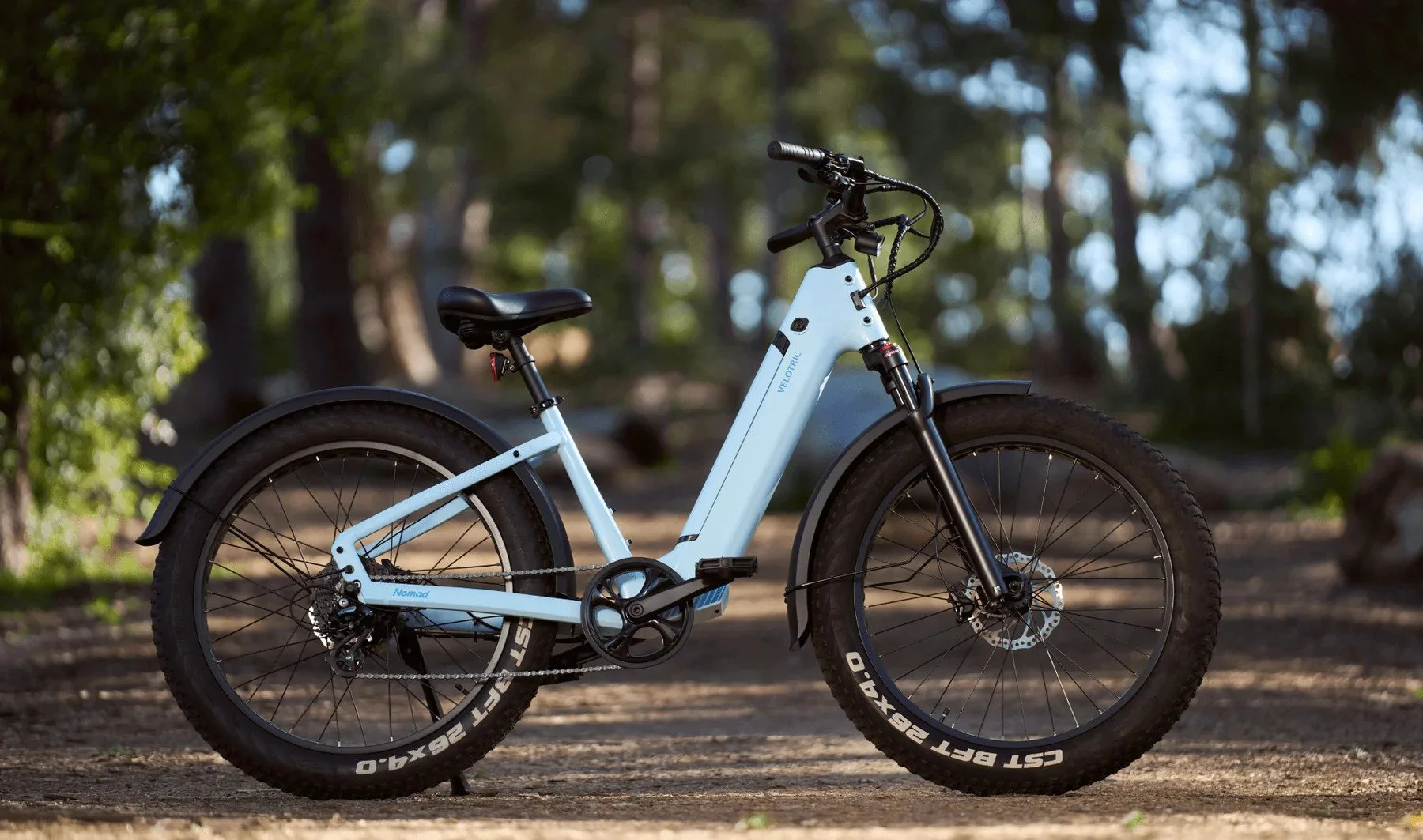

Velotric Nomad 1 Step-Thru E-Bike

Introducing the Nomad 1. A durable, fat tire e-bike for all terrain!

Go anywhere you want. Like a Nomad.

The Velotric Nomad 1 was made to carry you through any weather and across all terrains. It’s our most versatile and powerful e-bike yet, with a 750W high-performance motor (peak 1200W) and a 75Nm torque. Even at 8 degrees uphill, it’ll provide a smooth, effortless riding experience.

Have more fun with 50% longer range.

Equipped with a 21700 48V 14.4Ah removable battery made by Samsung, the Velotric Nomad 1 features a 50% longer range compared to similar bikes in the market. Up to 55 miles on a single charge.

Easy to hop on & off. Accessible to all riders.

Reinforced aluminum step-thru & high-step frame so you can easily hop on & off, even with items stored on the rear rack. Nomad 1 fits riders from 5'1 to 6'9.

Ride with peace of mind

Safety is our most important design philosophy. Not only did we certify both our battery and bike with UL, but we rigorously tested our bikes over 150,000 times under the toughest conditions so that you never have to worry about our quality.
The Nomad 1 is equipped with a rear light, IPX6 grade waterproof, and hydraulic disc brakes offering riders extra safety in any conditions.

Our most versatile adventure e-bike ever.

The Nomad 1 can easily conquer any road. The front fork gives you a smooth riding experience in parks, cities, suburbs, or anywhere else you ride.

  • FRAMESET

    Frame: Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders, quick release seatpost clamp

    Fork: Hydraulic suspension with 80mm travel, with Lock-out

    ELECTRONICS

    Motor Hub: 48V, 750W (peak 1200W),max torque 75Nm

    Battery: 48V, 691Wh, UL 2271 Recognized

    Cell: 21700, made by Samsung

    Charger: 48V, 3.0A, operates on 100V-240V AC, 5-6 hr charging

    Display: 3.5” Backlit LCD display with speed, trip, battery, assist level and more

    USB Port: 5V 500mA, output for external devices

    Throttle Assist: Thumb-control, removable

    Headlight: High output integrated LED, adjustable angle

    SPEED & RANGE

    Pedal Assist Range: 55miles

    Throttle Range: 52miles

    DRIVETRAIN

    Chainrings: 46T

    Crankset: Aluminum alloy, 170mm

    Cassette: 8-Speed, 13-34T

    Chain: KMC-Z8

    Rear Derailleur: Shimano RD-M310, 8-speed

    Shift Lever: Shimano SL-M315, 8-Speed, thumb shifter

    BRAKE

    Brake: Hydraulic disc brakes

    Rotors: 180mm front and rear

    Brake Levers: Aluminum alloy, with adjustable reach and power cutoff switch

    WHEEL

    Rims: Aluminum alloy, 36H

    Tire: 26x4.0”, puncture-resistant liner

    COCKPIT

    Handlebars: Aluminum alloy, 31.8mm, 700mm wide

    Grips: Durable ergonomic Grips

    Stem: Velotric customized, 10-Degree rise

    Saddle: Comfort ergonomic seat, 220mm wide

    Seat Post: Aluminum alloy, 350mm x 30.4mm, quick release clamp

    SUPPORTS

    Fenders: Front and rear full coverage

    Pedals: 9/16’’ Alloy platform with reflectors

    Kickstand: Heavy-duty aluminum with wide foot

    WEIGHT& LOAD

    Bike Weight: High-step 73lbs

    Step-thru 72lbs

    Front rack Load Capacity: 33lbs

    Rear rack Load Capacity: 55lbs

    Max Bike Load: 440lbs

  • Head Tube Angle: 68°

    Seat Tube Angle: 70°

    Reach / Stack: 380/680mm

    Rider Heights: 5'1''-6'4''

    Rear Center: 510mm

    Minimum seat height: 817mm

    Maximum seat height: 1020mm

    Handlebar height: 1080mm

    Total length: 1915mm

    Seat tube length: 435mm

    Standover height: 420mm

    Wheelbase: 1140mm
